87611-RW SAE Flange 6000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：87391-RW 90° SAE Flange 3000 PSI
NEXT：87641-RW 45° SAE Flange6000 PSI

Specification
Contact Us

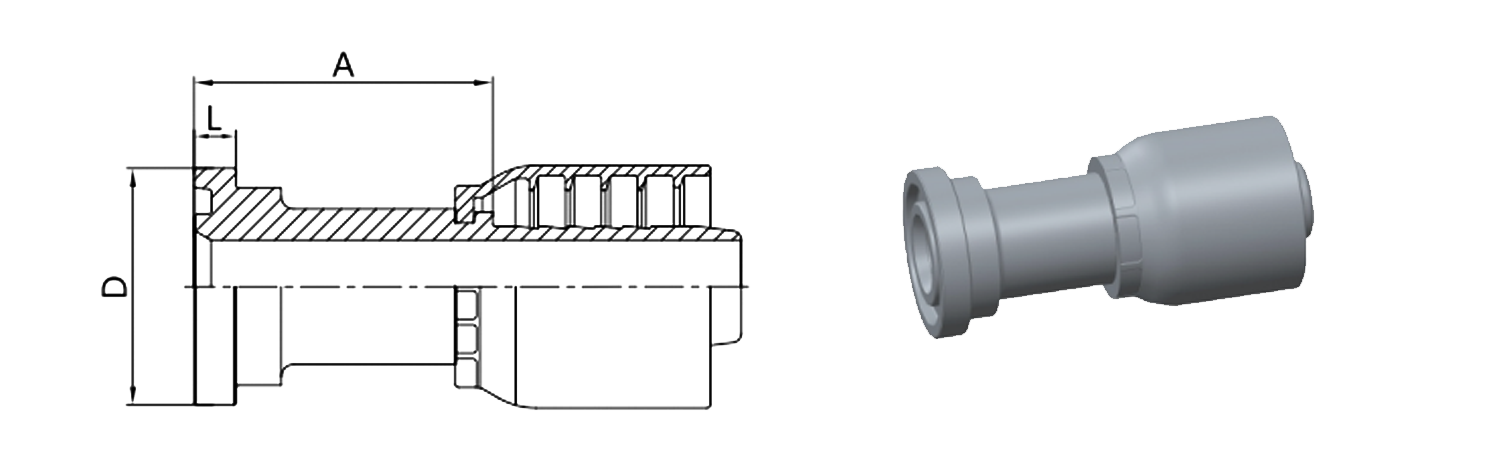

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS L
PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS L
87611-08-08RW	1/2"	13	08	47	31.7	7.75
87611-12-10RW	3/4"	16	10	50.5	41.3	8.76
87611-12-12RW	3/4"	19	12	51	41.3	8.76
87611-16-12RW	1"	19	12	56	47.6	9.53
87611-16-16RW	1"	25	16	57	47.6	9.53
87611-16-20RW	1"	32	20	61	47.6	9.53
87611-16-20RW	1.1/4"	25	16	65	54	10.29
87611-20-20RW	1.1/4"	32	20	66	54	10.29
87611-24-20RW	11/2"	32	20	75	63.5	12.57
87611-204-24RW	1.1/2"	38	24	75	63.5	12.57
87611-32-24RW	2"	38	24	85	79.4	12.57
87611-32-32RW	2"	51	32	85	79.4	12.57
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 87612-xx-xx. EATON Winner HAP-EHGC-2021-C1 June 2009
