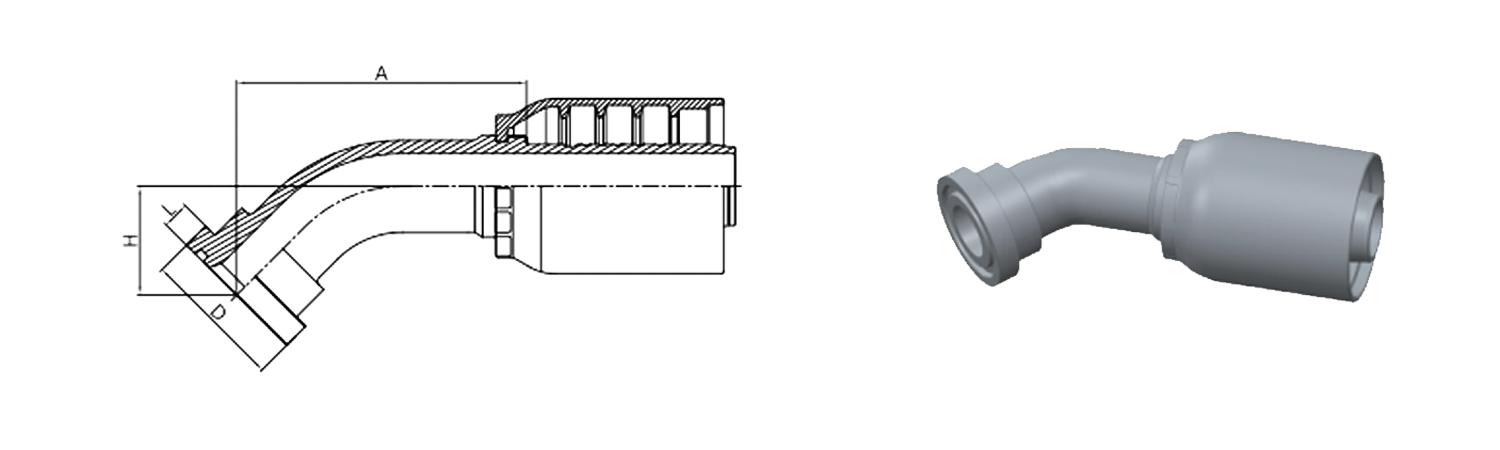

87643-RW 45°SAE Flange 6000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：87613-RW SAE Flange 6000 PSI
NEXT：87693-RW 90°SAE Flange 6000 PSI

Specification
Contact Us

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
87643-12-12RW	3/4"	19	12	88.7	41.3	31.8	8.76
87643-16-12RW	1"	19	12	90.8	47.6	33.9	9.53
87643-16-16RW	1"	25	16	101.1	47.6	34.7	9.53
87643-20-16RW	1.1/4"	25	16	103.9	54	37.5	10.29
87643-20-20RW	1.1/4"	32	20	116.6	54	41.5	10.29
87643-24-20RW	1.1/2"	32	20	120.1	63.5	45.1	12.57
87643-24-24RW	1.1/2"	38	24	134.6	63.5	49	12.57
87643-32-24RW	2"	38	24	140.2	79.4	54.7	12.57
87643-32-32RW	2"	51	32	163.3	79.4	61.9	12.57
EATON Winner H-AP-EHGC-2021-C1 June 2009

About OPK Fitting

OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.
Ningbo OPK Fitting Co., Ltd. is a China professional OEM 87643-RW 45°SAE Flange 6000 PSI suppliers and ODM 87643-RW 45°SAE Flange 6000 PSI suppliers .

Over 10 years of experience.

A team of skilled design professionals and talent.

Excellent product quality and thoughtful customer service.
