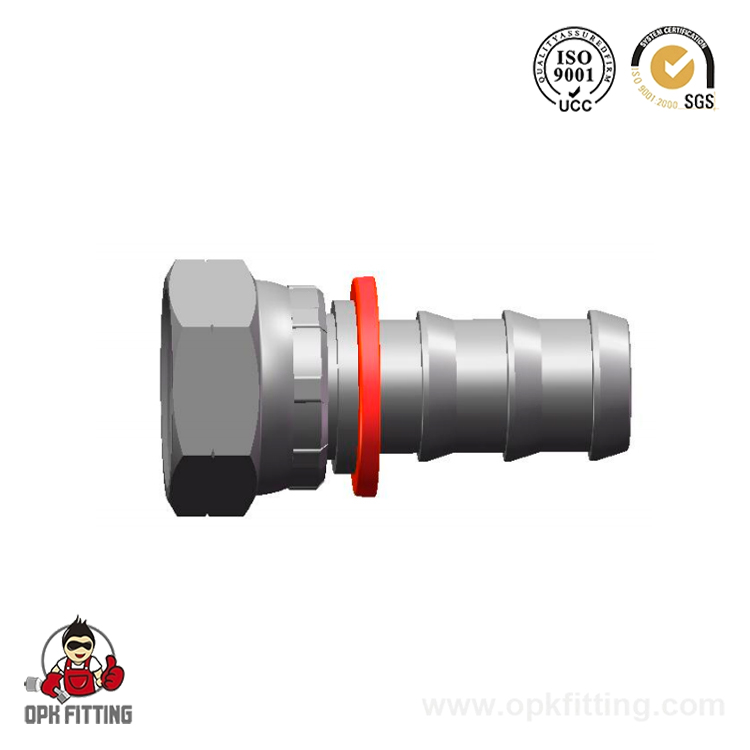

22610 BSP Female 60°Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

Specification
Contact Us

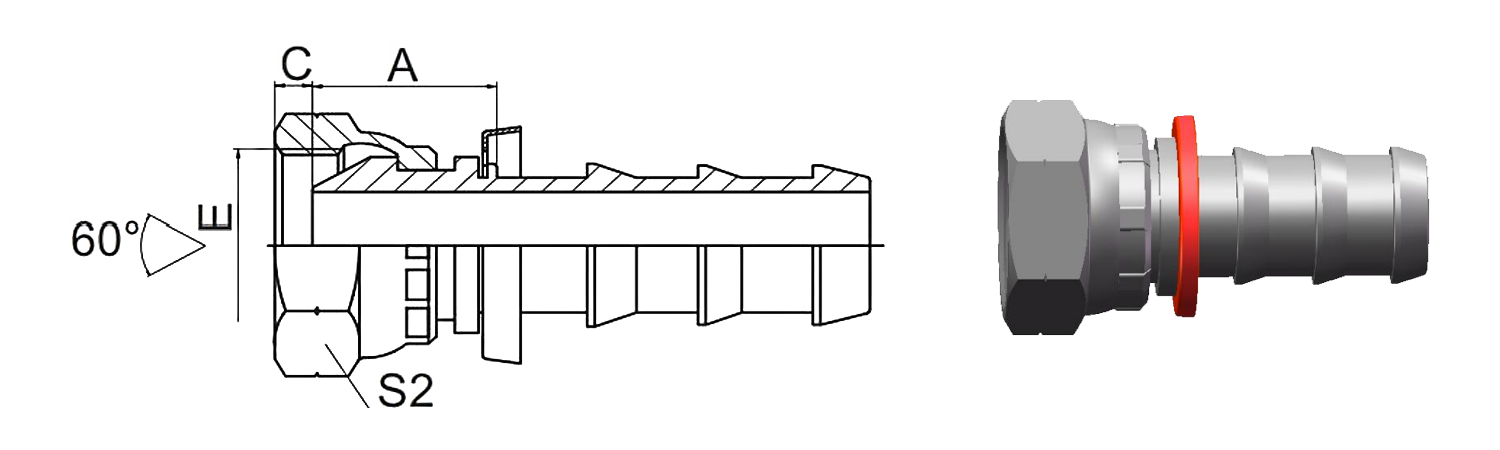

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
22610-04-04	G1/4"X19	6	04	14.7	5.5	19
22610-06-06	G3/8"X19	10	06	16.5	6.3	22
22610-08-08	G1/2"X14	12	08	18.2	7.5	27
22610-12-12	G3/4"X14	20	12	19.9	10.9	32
