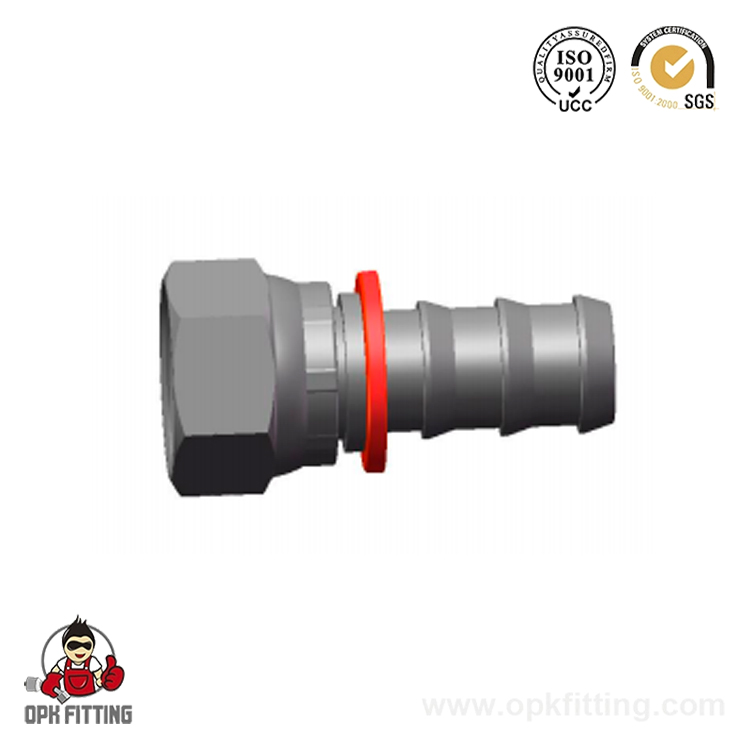

26710 JIC Female 74°Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

Specification
Contact Us

PART NO.	THREADE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
26710-04-04	7/16"X20	6	04	12.2	9	15
26710-05-04	1/2"X20	6	04	12.2	9.5	17
26710-06-06	9/16"X18	10	06	12.5	10.5	19
26710-08-06	3/4"X16	10	06	12.5	11	24
26710-08-08	3/4"X16	12	08	14.7	11	24
26710-10-08	7/8"X14	12	08	15.2	13	27
26710-10-10	7/8"X14	16	10	15.7	13	27
26710-12-12	1.1/16"X12	20	12	17.4	15	32
26710-16-16	1.5/16"X12	25	16	18.6	16	41
