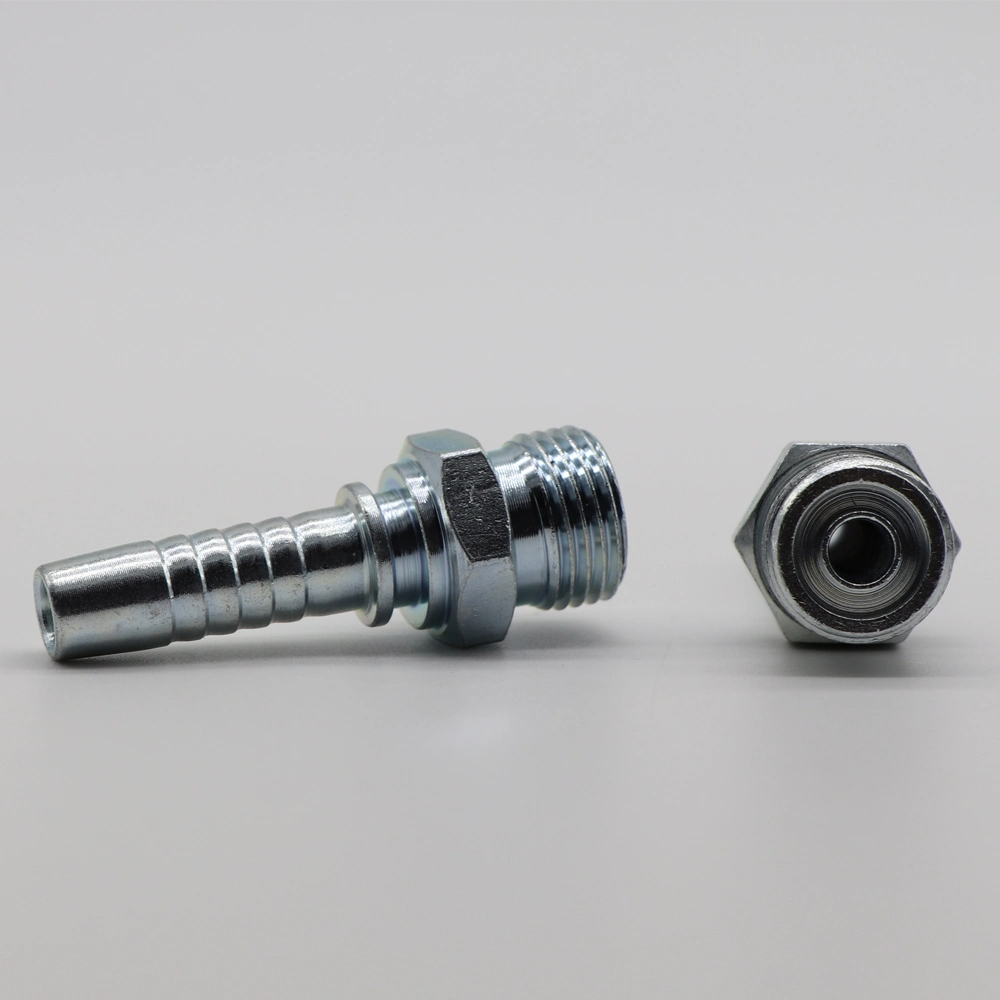

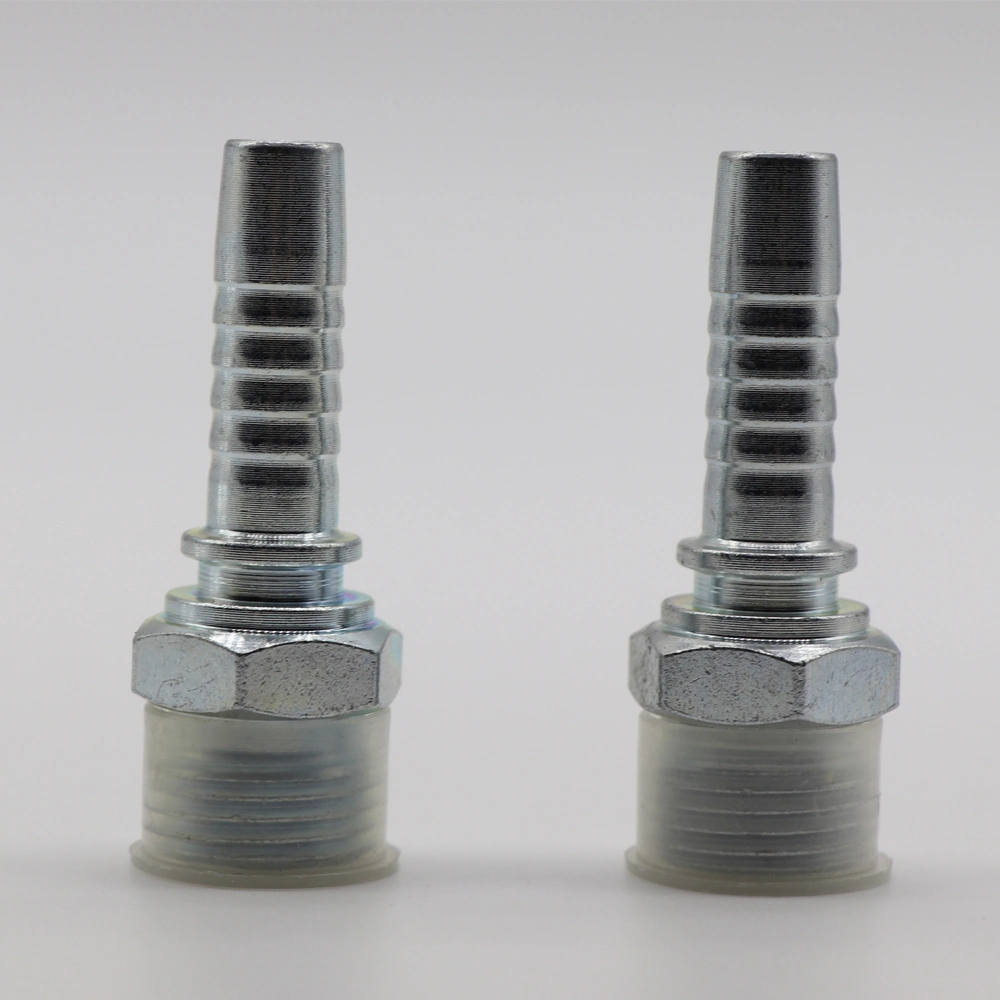

14211 ORFS Male O-Ring Seal

Product Description
Product name: 14211 Orfs Hydraulic Fitting
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Male
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	O-RING	DIMENSIONS A	DIMENSIONS B	DIMENSIONS S1
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	O-RING	DIMENSIONS A	DIMENSIONS B	DIMENSIONS S1
14211-04-04	9/16"X18	6	04	O011	22.5	10	17
14211-06-04	11/16"X16	6	04	O012	24	11.2	19
14211-06-06	11/16"X16	10	06	O012	24	11.2	19
14211-08-06	13/16"X16	10	06	O014	27.5	12.8	22
14211-08-08	13/16"X16	12	08	O014	28	12.8	22
14211-08-10	13/16"X16	16	10	O014	28.5	12.8	22
14211-10-08	1"X14	12	08	O016	32.5	15.5	27
14211-10-10	1"X14	16	10	O016	33.5	15.5	27
14211-12-08	1.3/16"X12	12	08	O018	35.5	17	32
14211-12-10	1.3/16"X12	16	10	O018	35.5	17	32
14211-12-12	1.3/16"X12	20	12	O018	36	17	32
14211-16-12	1.7/16"X12	20	12	O021	37.5	17.5	38
14211-16-16	1.7/16"X12	25	16	O021	38.5	17.5	38
14211-20-20	1.11/16"X12	32	20	O025	41.5	17.5	46
14211-24-24	2"X12	40	24	O029	46.5	17.5	55
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 14212-xx-xx.
