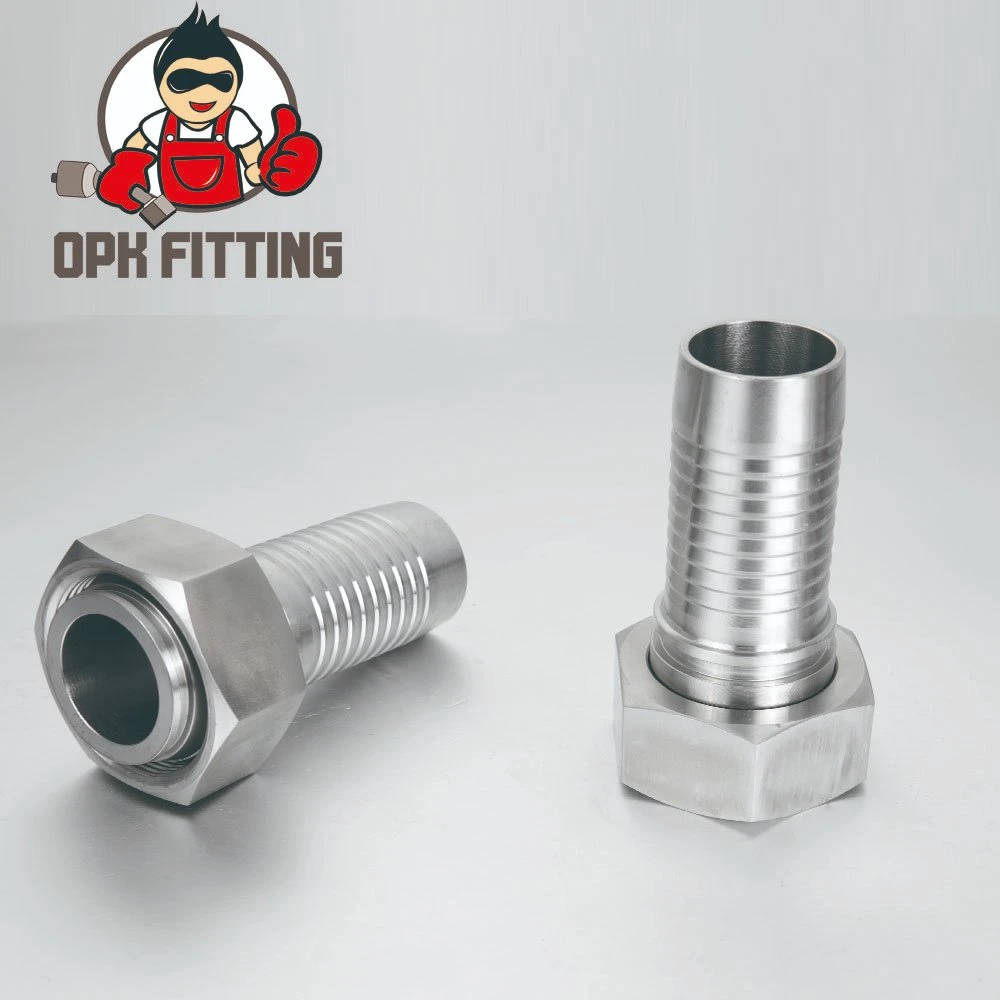

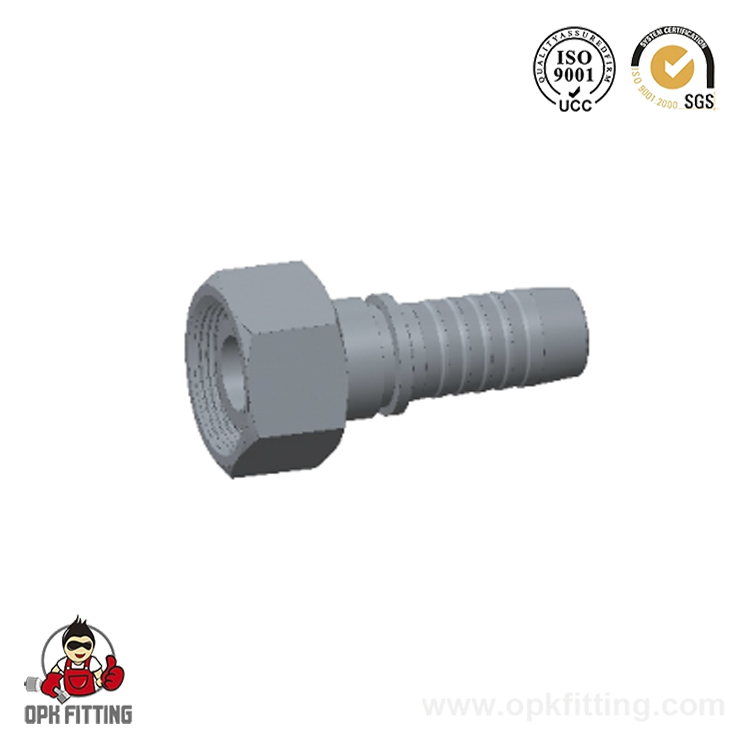

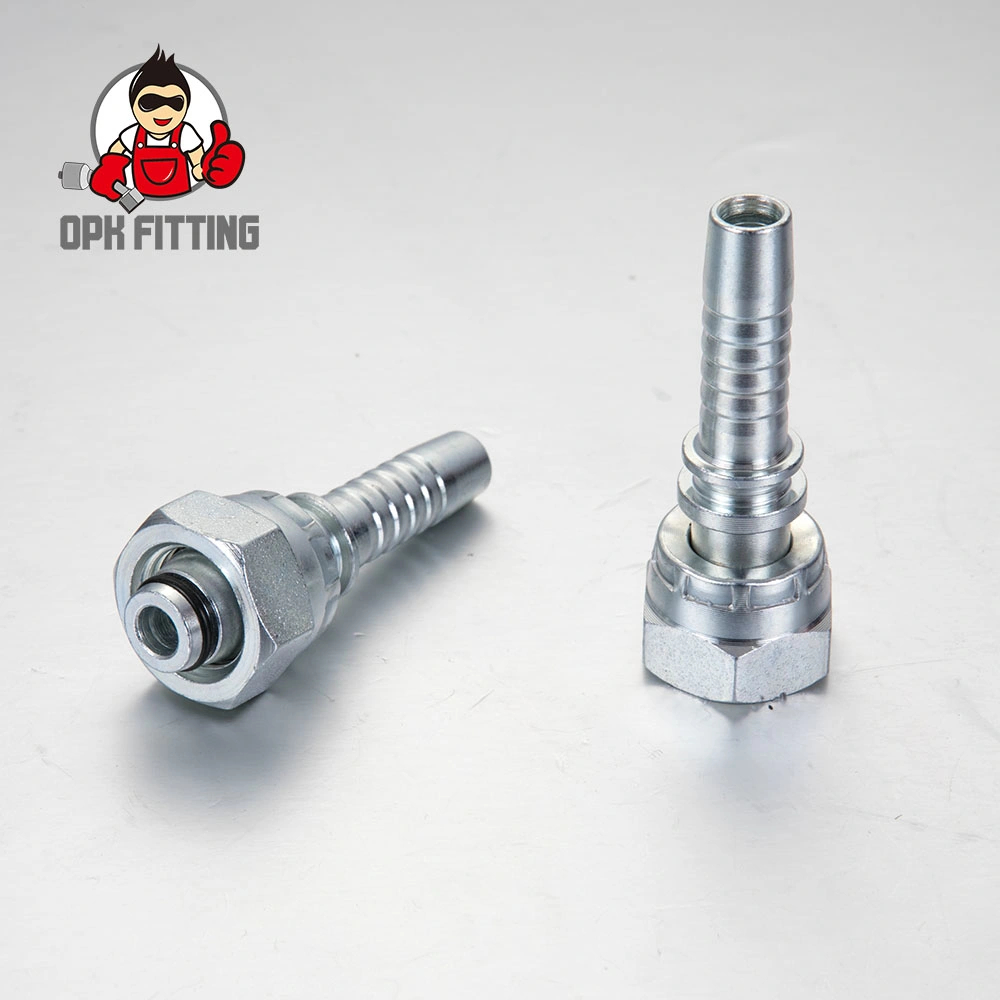

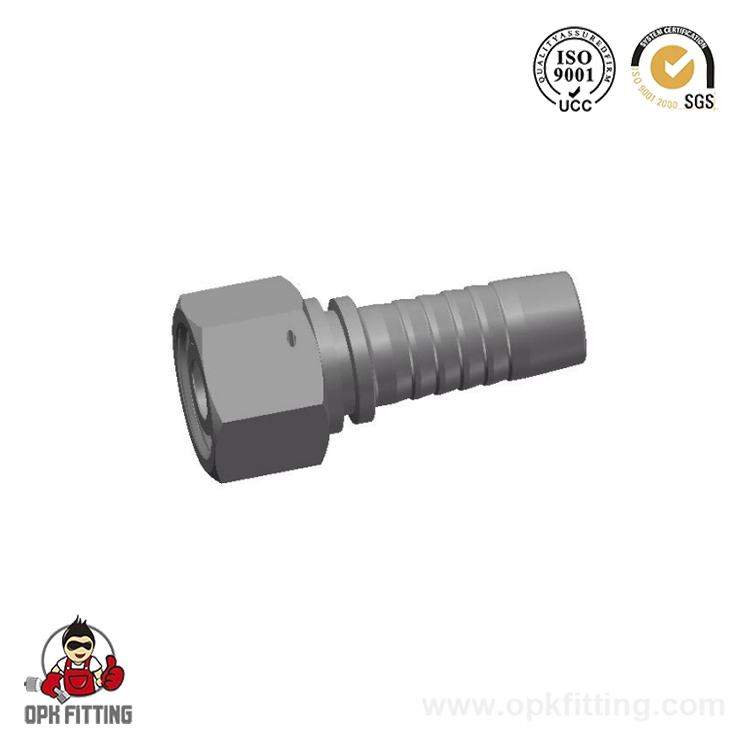

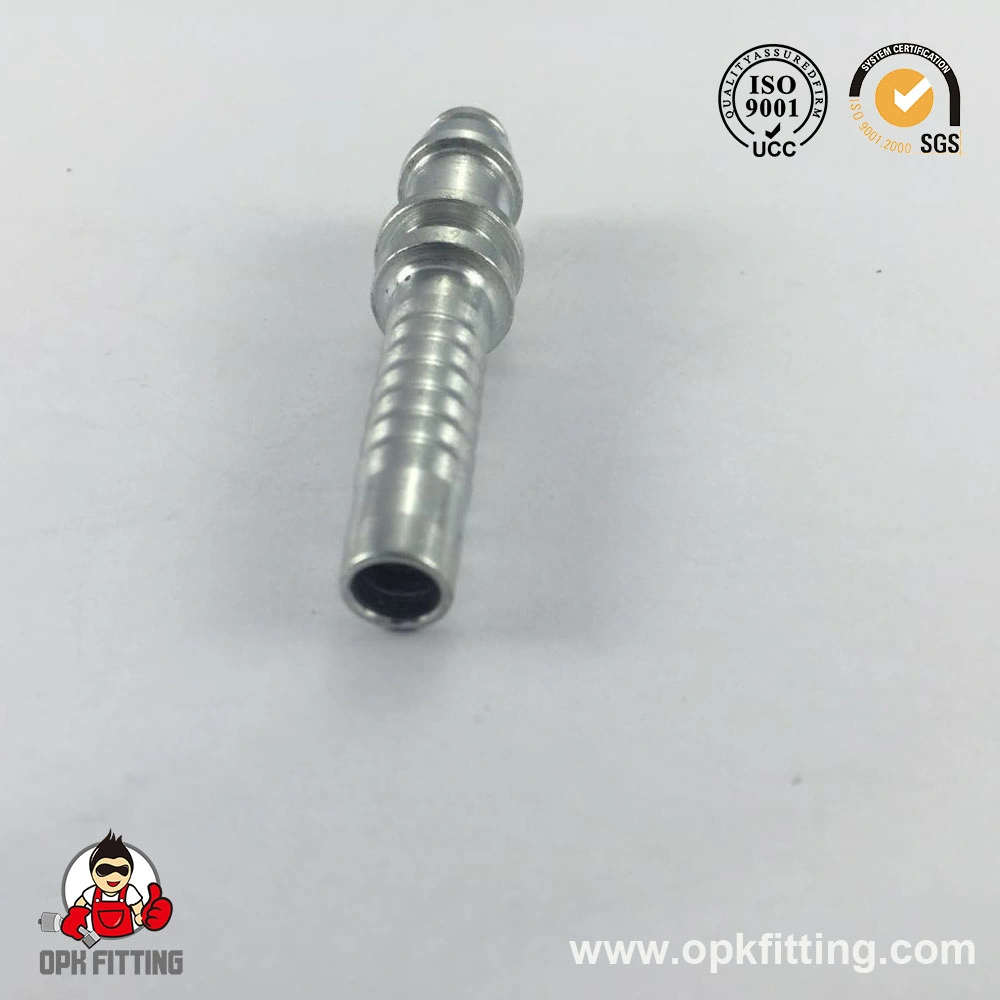

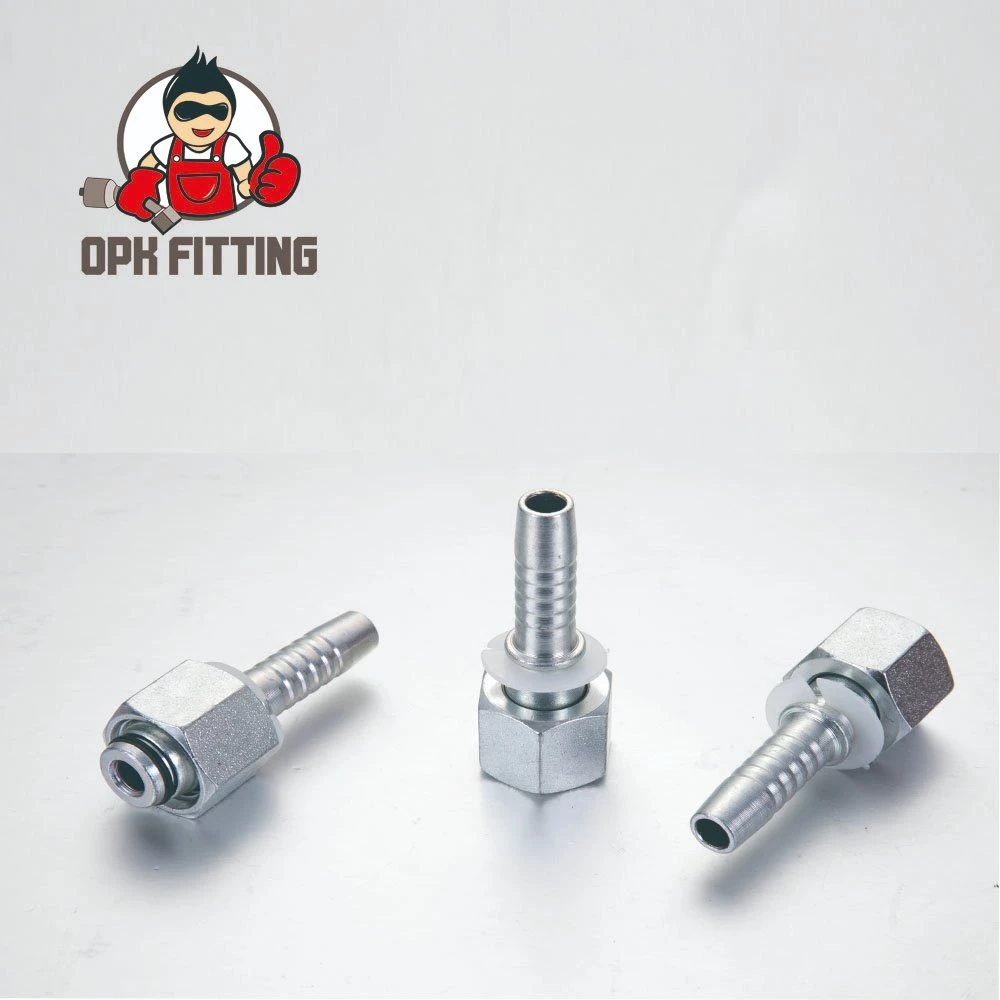

20411 Metric Female 24° Cone O-Ring L.T.Din3865

Product Description
Product name: Metric Female 24° Cone O-Ring L. T. Stainless Steel Pipe Fitting (20411)
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Male
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

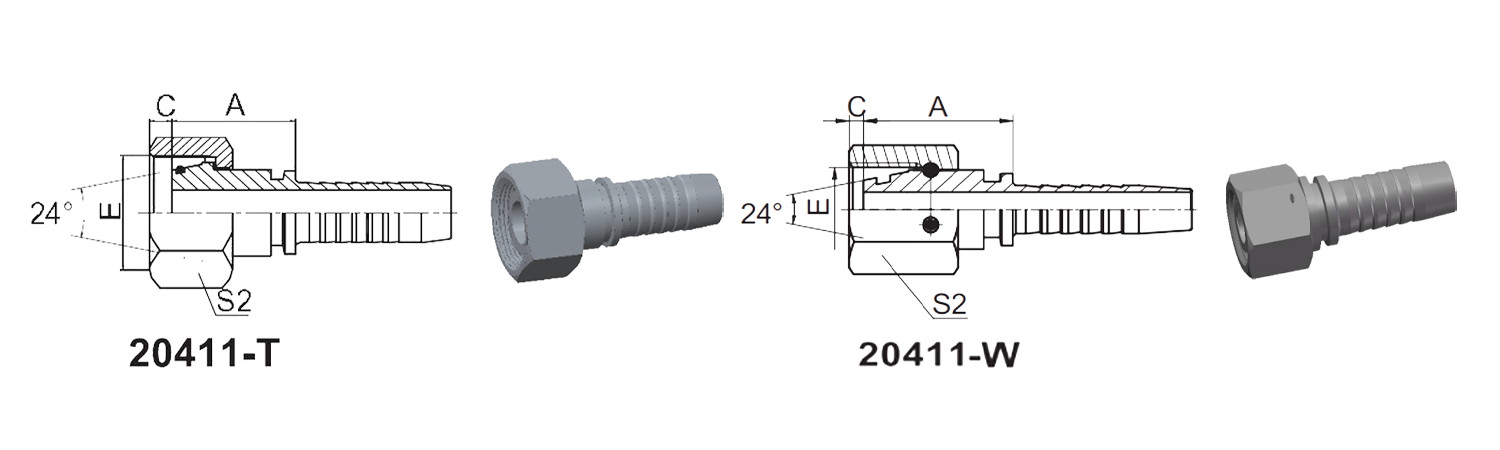

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	O RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	TUBE O.D.	O RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
20411-12-04	M12X1.5	6	04	6	O04.5X1.5	26	1	17
20411-12-04W	M12X1.5	6	4	6	O04.5X1.5	22.5	1.4	17
20411-14-04T	M14X1.5	6	04	8	O06.5X1.5	22.5	2	17
20411-14-04W	M14X1.5	6	4	8	O06.5X1.5	22.5	1.6	17
20411-14-05	M14X1.5	8	05	8	O06.5X1.5	27.5	2	19
20411-14-06	M14X1.5	10	06	8	O06.5X1.5	27.5	2	19
20411-14-06W	M14X1.5	10	6	8	O06.5X1.5	23	1.6	17
20411-16-04T	M16X1.5	6	4	10	O08.0X1.5	24	2	19
20411-16-05T	M16X1.5	8	05	10	O08.0X1.5	22	2	19
20411-16-05W	M16X1.5	8	5	10	O08.0X1.5	22	2	19
20411-16-06	M16X1.5	10	06	10	O08.0X1.5	28	2	22
20411-16-06W	M16X1.5	10	6	10	O08.0X1.5	23.5	2	19
20411-18-04T	M18X1.5	6	04	12	O10.0X1.5	24.5	2.5	22
20411-18-05T	M18X1.5	8	5	12	O10.0X1.5	24.5	2.5	22
20411-18-06T	M18X1.5	10	6	12	O10.0X1.5	27.5	2.5	22
20411-18-08	M18X1.5	12	08	12	O10.0X1.5	29.5	2.5	24
20411-18-08W	M18X1.5	12	8	12	O10.0X1.5	24.5	1.5	22
20411-22-05T	M22X1.5	8	5	15	O12.0X2.0	26.5	3	27
20411-22-06T	M22X1.5	10	6	15	O12.0X2.0	26.5	3	27
20411-22-08T	M22X1.5	12	8	15	O12.0X2.0	28	3	27
20411-22-10	M22X1.5	16	10	15	O12.0X2.0	33	3	27
20411-26-08T	M26X1.5	12	8	18	O15.0X2.0	27.5	2	32
20411-26-10T	M26X1.5	16	10	18	O15.0X2.0	31	2	32
20411-26-12	M26X1.5	20	12	18	O15.0X2.0	34.5	2.5	32
20411-26-12W	M26X1.5	20	12	18	O15.0X2.0	27.5	2	32
20411-30-10T	M30X2	16	10	22	O20.0X2.0	31	4	36
20411-30-12T	M30X2	20	12	22	O20.0X2.0	34	4	36
20411-36-12T	M36X2	20	12	28	O26.0X2.0	33	4.5	41
20411-36-14T	M36X2	22	14	28	O26.0X2.0	33	4.5	41
20411-36-16T	M36X2	25	16	35	O26.0X2.0	33	4.5	41
20411-45-16T	M45X2	25	16	35	O32.0X2.5	36.5	4	50
20411-45-20T	M45X2	32	20	35	O32.0X2.5	37.5	4	50
20411-45-24	M45X2	40	24	35	O32.0X2.5	45.5	4	55
20411-52-20T	M52X2	32	20	42	O38.0X2.5	38.5	4	60
20411-52-24T	M52X2	40	24	42	O38.0X2.5	38	4	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20412-xx-xx.
