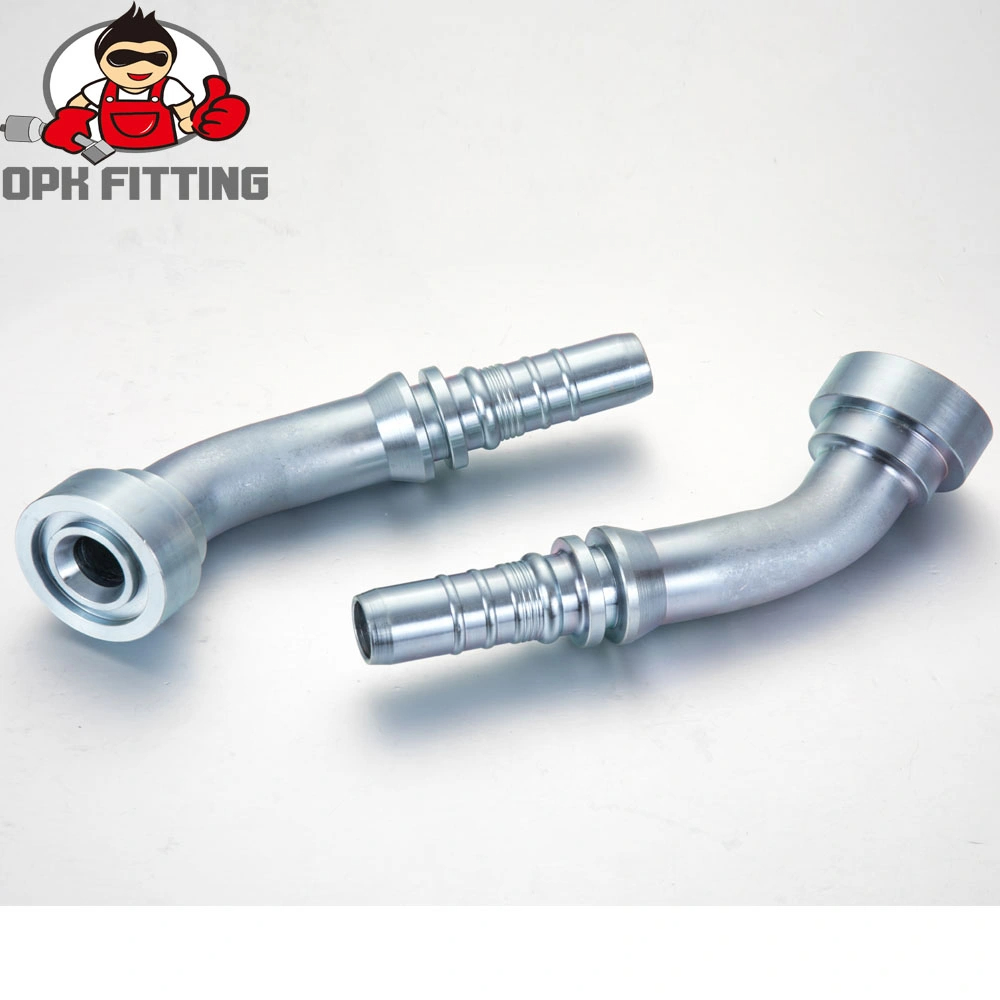

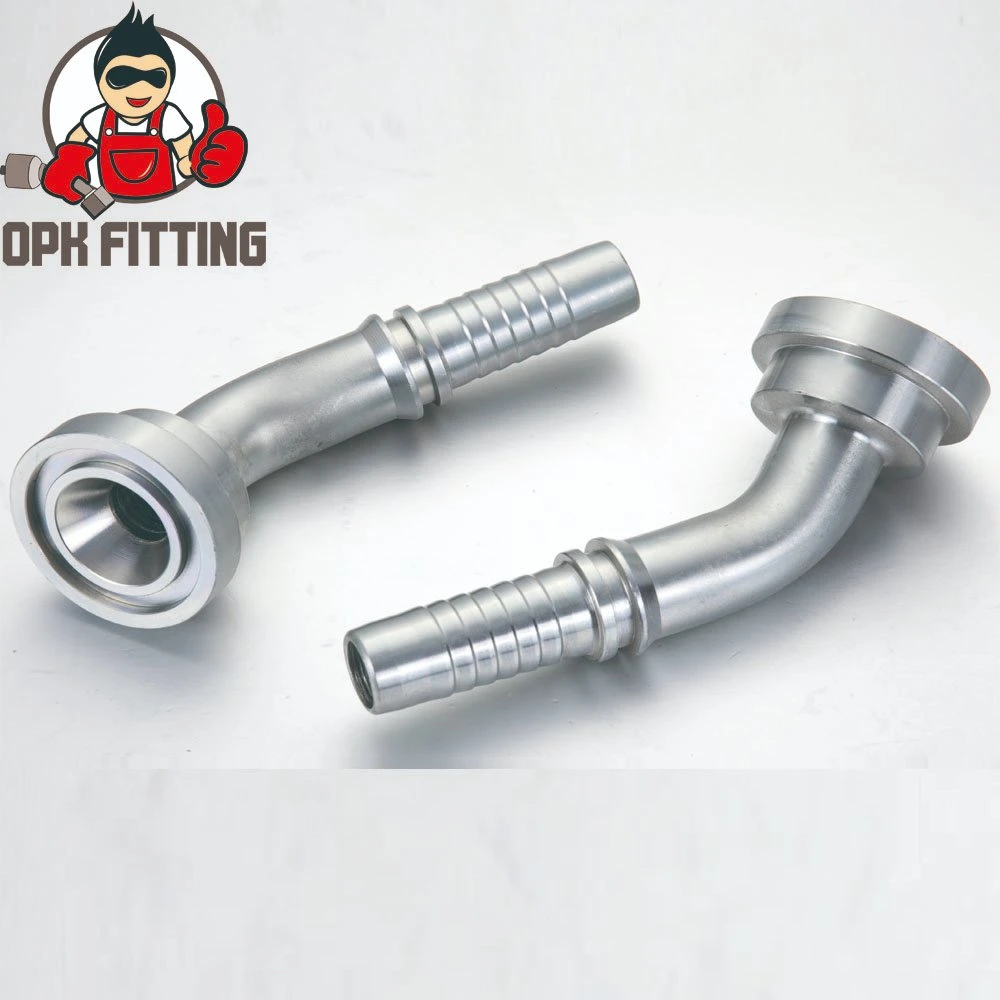

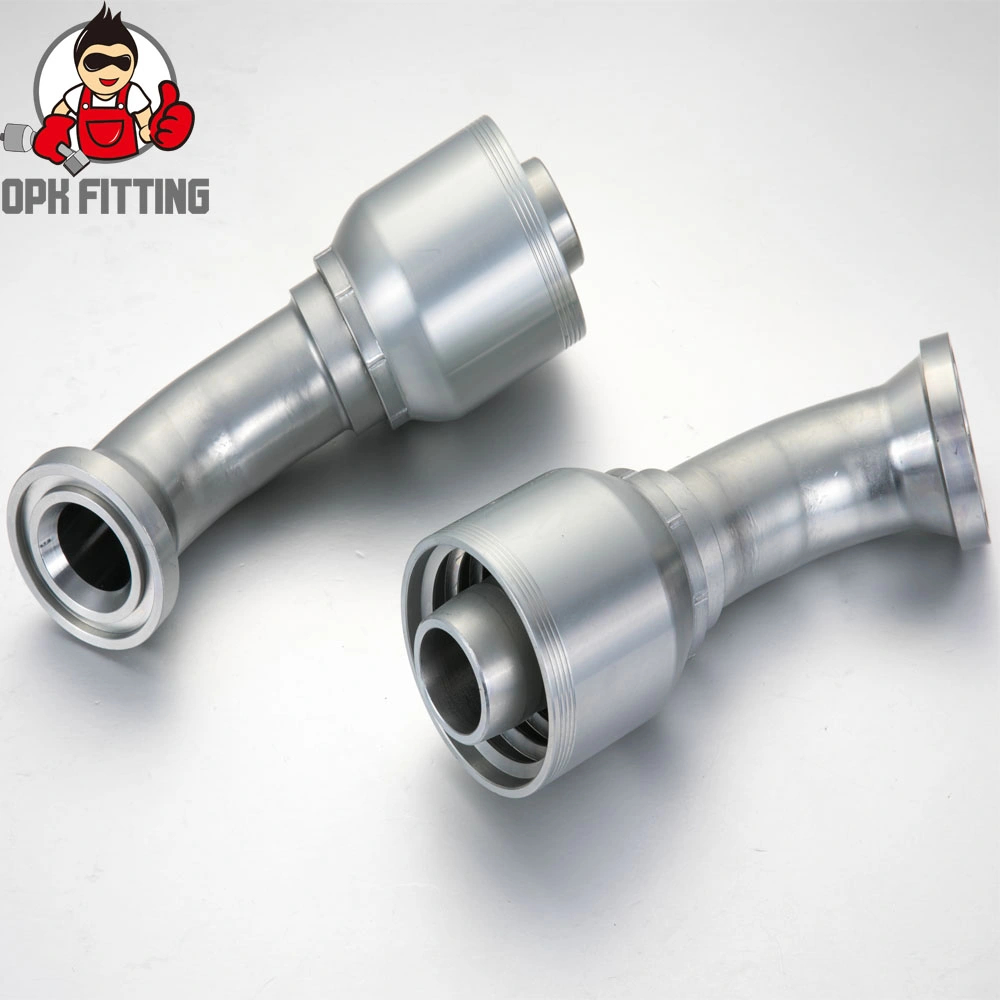

87341 45°SAE Flange 3000 PSI

Product Description
Product name : 45° Elbow SAE Flange 3000 Psi Hydraulic Union Hose Fitting/ Integrated Hose Fitting
1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

Standard:	DIN, GB, JIS
Material:	Stainless Steel
Connection:	Male
Surface Treatment:	Galvanized Sheet
Head Type:	Hexagon
HS:	73072900

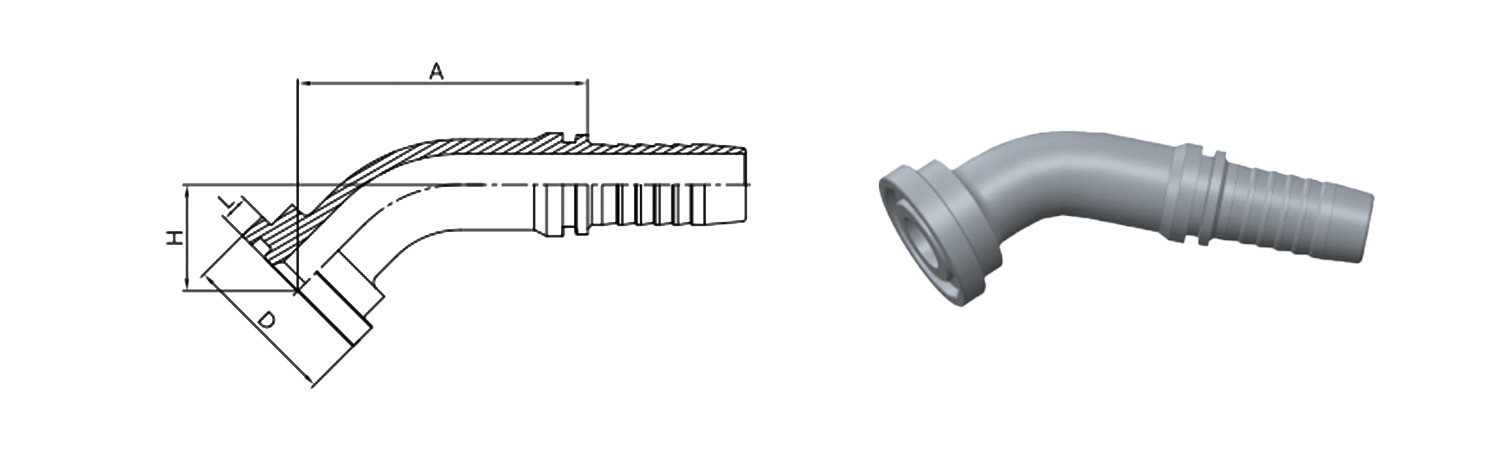

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
87341-08-08	1/2"	12	08	55	30.2	24	21	6.73
87341-12-08	3/4"	12	08	55.5	38.1	31.7	21.4	6.73
87341-12-10	3/4"	16	10	62.3	38.1	31.7	22.5	6.73
87341-12-12	3/4"	20	12	73	38.1	31.7	23.8	6.73
87341-16-12	1"	20	12	73.7	44.4	38	24.5	8
87341-16-16	1"	25	16	82.6	44.4	38	30.7	8
87341-16-20	1"	32	20	94.5	44.4	38	33.8	8
87341-20-16	1.1/4"	25	16	82.6	50.8	43	30.7	8
87341-20-20	1.1/4"	32	20	94	50.8	43	33.8	8
87341-24-20	1.1/2"	32	20	95.4	60.3	50	34.2	8
87341-24-24	1.1/2"	40	24	107.8	60.3	50	38.2	8
87341-32-24	2"	40	24	109.9	71.4	62	39.1	9.53
87341-32-32	2"	50	32	131.4	71.4	62	48.2	9.53
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 87342-xx-xx.
