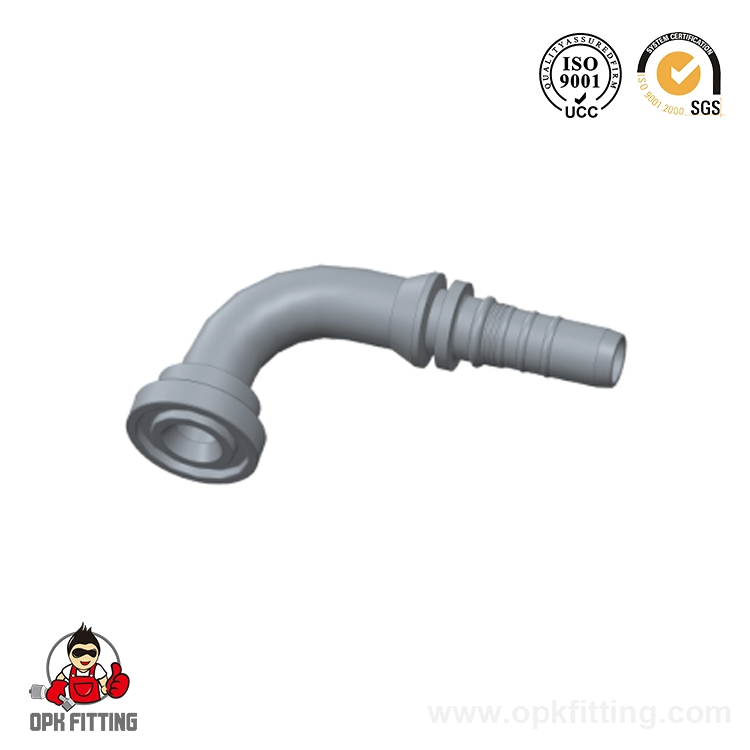

87693 90°SAE Flange 6000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS L
87693-12-12	3/4"	19	12	75	41.3	66	8.76
87693-16-12	1"	19	12	75	47.6	69	9.53
87693-16-16	1"	25	16	88.9	47.6	74.5	9.53
87693-20-16	1.1/4"	25	16	88.9	54	78.5	10.29
87693-20-20	1.1/4"	32	20	105.8	54	89.5	10.29
87693-24-20	1.1/2"	32	20	105.8	63.5	94.5	12.57
87693-24-24	1.1/2"	38	24	124.2	63.5	108	12.57
87693-32-24	2"	38	24	124.2	79.4	116.3	12.57
87693-32-32	2"	51	32	150.3	79.4	136.3	12.57
EATON Winner H-AP-EHGC-2021-C1 June 2009
