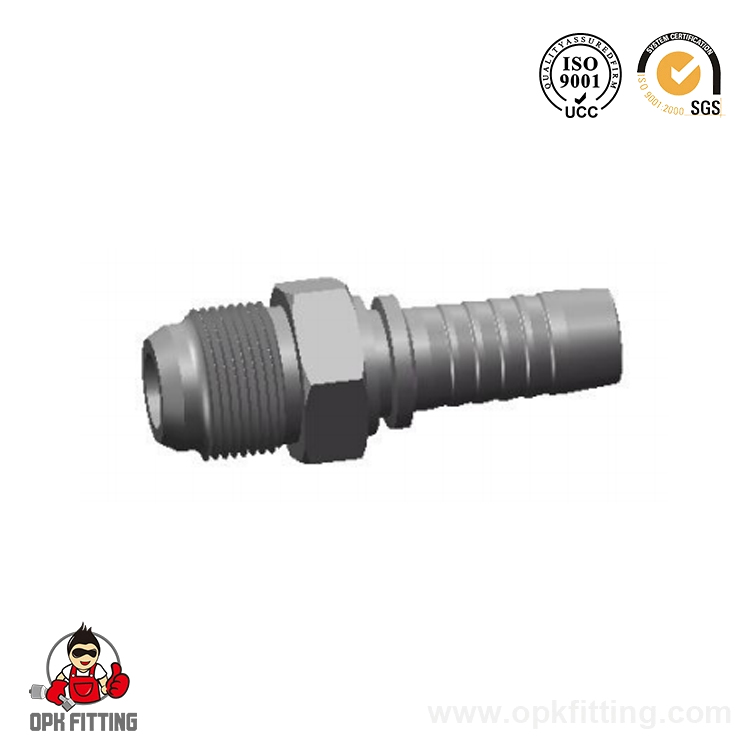

18611 JIS Metric Male 60° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS B	DIMENSIONS S1

18611-14-04	M14X1.5	6	04	29.5	17	17
18611-16-04	M16X1.5	6	04	30.5	18	17
18611-16-06	M16X1.5	10	06	30.5	18	17

18611-18-06	M18X1.5	10	06	30.5	18	19
18611-20-08	M20X1.5	13	08	35	20	22
18611-22-08	M22X1.5	13	08	35.5	20	24
18611-24-10	M24X1.5	16	10	39.5	21.5	27
18611-30-12	M30X1.5	19	12	45.5	26	32
18611-33-16	M33X1.5	25	16	50.5	30	36
18611-36-20	M36X1.5	32	20	56.5	33	41
18611-42-24	M42X1.5	38	24	59.5	36	46
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 18612-xx-xx.
