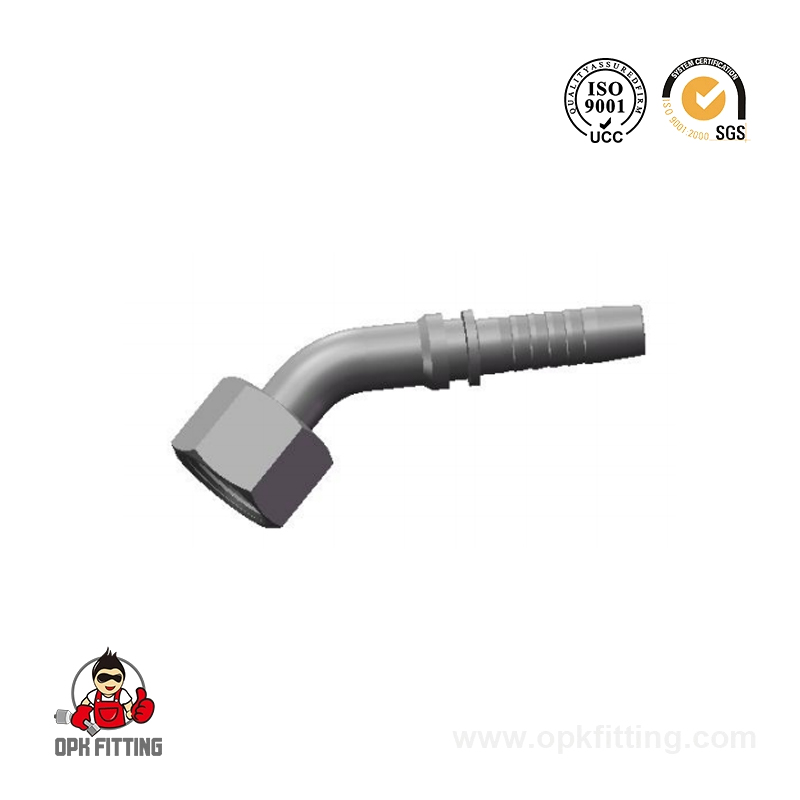

20141 45° Metric Female Multiseal

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

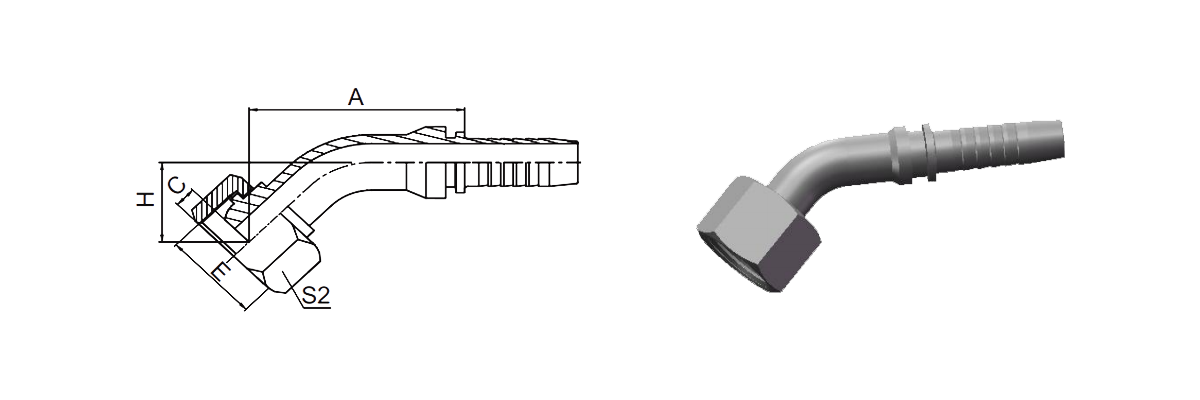

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20141-14-04T	M14X1.5	6	04	43.4	4.5	21.3	17
20141-14-05	M14X1.5	8	05	45.5	4.5	22.2	19
20141-16-04T	M16X1.5	6	04	43.7	4.5	21.6	19
20141-16-05T	M16X1.5	8	05	45.8	4.5	22.5	19
20141-16-06	M16X1.5	10	06	47.4	4.5	23.2	22
20141-18-05T	M18X1.5	8	05	46.8	4	22.6	22
20141-18-06T	M18X1.5	10	06	48.5	4	24.2	22
20141-18-08	M18X1.5	13	08	52.2	4	25.7	24
20141-20-06T	M20X1.5	10	06	47.4	5.5	23.2	24
20141-20-08	M20X1.5	13	08	45	5.5	18.3	27
20141-22-06T	M22X1.5	10	06	47.8	5	23.5	27
20141-22-08T	M22X1.5	13	08	62.5	5	27.5	27
20141-24-08T	M24X1.5	13	08	61.1	5.5	26.1	30
20141-24-10	M24X1.5	16	10	75.4	5	29.6	30
20141-27-10DT	M27X1.5	16	10	74.4	5.5	29.6	32
20141-27-10T	M27X2	16	10	72.1	5.5	27.8	32
20141-30-12D	M30X1.5	19	12	80.9	6	33.5	36
20141-30-12T	M30X2	19	12	81.7	6	33.6	36
20141-36-14T	M36X2	22	14	83	7	32.64	41
20141-39-16T	M39X2	25	16	89.5	7	34	46
20141-45-20T	M45X2	32	20	99.1	8.5	38.4	55
20141-52-24T	M52X2	38	24	114.1	9	43.4	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20142-xx-xx.
