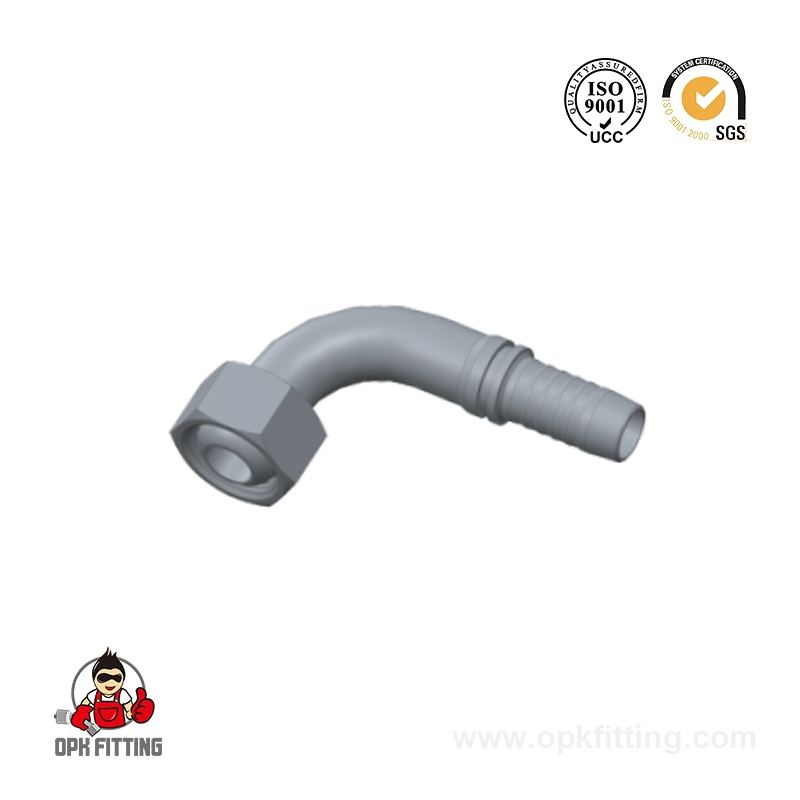

20191 90° Metric Female Multiseal

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

Specification
Contact Us

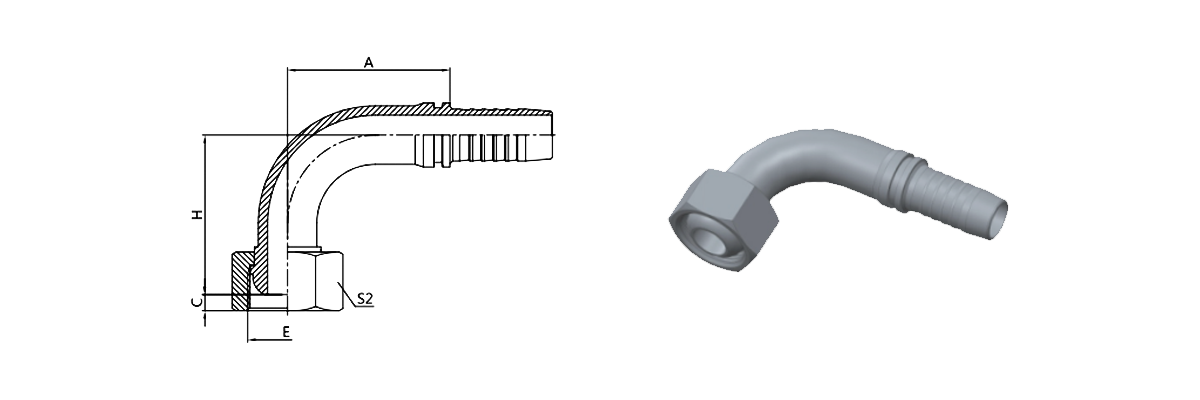

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20191-14-04T	M14X1.5	6	04	30	4.5	38	17
20191-16-04T	M16X1.5	6	04	30	4.5	38.5	19
20191-16-05T	M16X1.5	8	05	33	4.5	41.5	19
20191-16-06	M16X1.5	10	06	35.3	4.5	43.8	22
20191-18-05T	M18X1.5	8	05	33	4	43	22
20191-18-06T	M18X1.5	10	06	35.3	4	45.3	22
20191-20-06T	M20X1.5	10	06	35.3	5.5	43.8	24
20191-20-08	M20X1.5	13	08	39.5	5.5	39	27
20191-22-06T	M22X1.5	10	06	35.3	5	44.3	27
20191-22-08T	M22X1.5	13	08	41	5	53	27
20191-24-08T	M24X1.5	13	08	41	5.5	51	30
20191-24-10	M24X1.5	16	10	58	5	58.5	30
20191-27-10DT	M27X1.5	16	10	56	5.5	55.5	32
20191-27-10T	M27X2	16	10	56	5.5	55.5	32
20191-30-12D	M30X1.5	19	12	67.5	6	68.5	36
20191-30-12T	M30X2	19	12	66.2	6	68.5	36
20191-36-12T	M36X2	19	12	65.5	7	67	41
20191-36-14T	M36X2	22	14	71.2	7	69	41
20191-39-16T	M39X2	25	16	78	7	73.5	46
20191-45-20T	M45X2	32	20	91.5	8.5	85	55
20191-52-24T	M52X2	38	24	109.4	9	100	60
20191-64-32T	M64X2	51	32	131	14	122.3	75
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20192-xx-xx.
