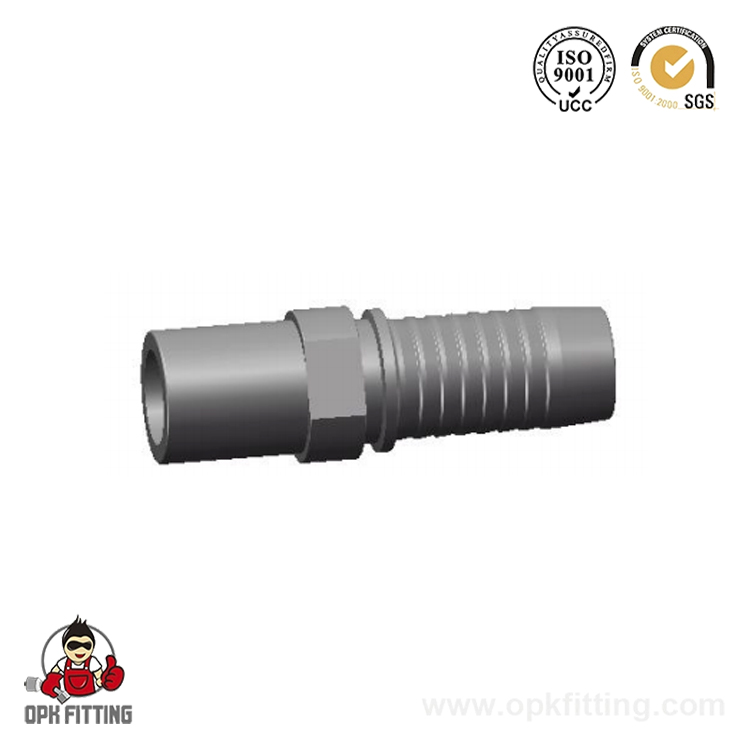

51011 GB Metric Standpipe

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

PREV：50091 90° Metric Standpipe Straight DIN 2353
NEXT：51091 GB Metric 90° Standpipe

Specification
Contact Us

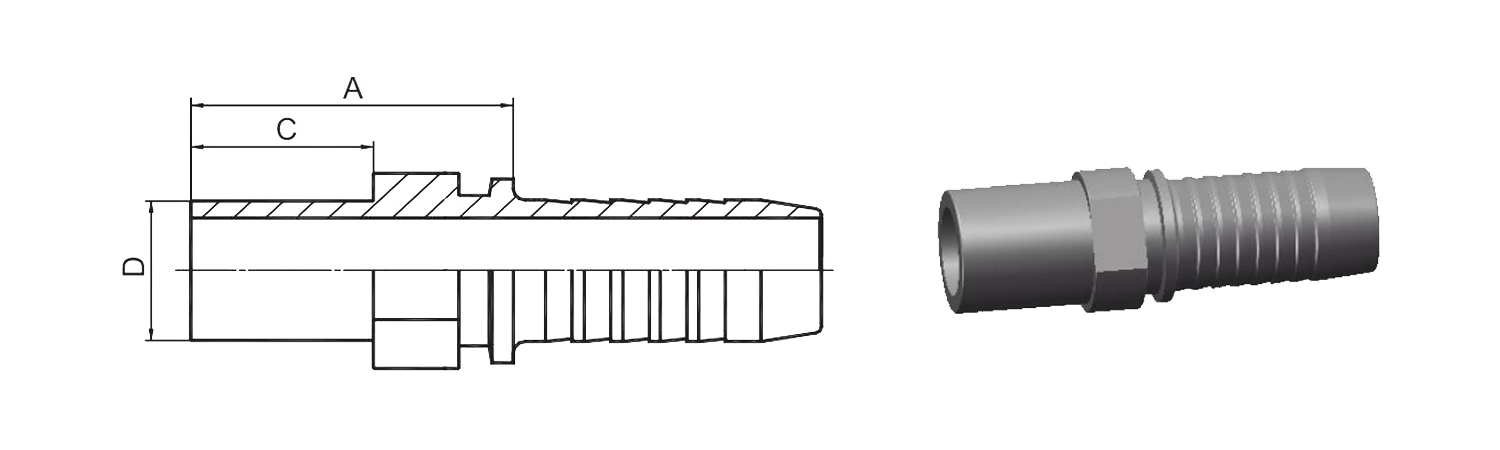

PART NO.	TUBE O.D.	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C
51011-04-03	4	5	03	27	17
51011-06-03	6	5	03	30.5	19
51011-06-04	6	6	04	31	19
51011-08-04	8	6	04	31	19
51011-08-05	8	8	05	31.5	19
51011-08-06	8	10	06	31.5	19
51011-10-04	10	6	04	35	22
51011-10-05	10	8	05	35	22
51011-10-06	10	10	06	35	22
51011-12-05	12	8	05	35	22
51011-12-06	12	10	06	35	22
51011-14-06	14	10	06	35	22
51011-14-08	14	13	08	35.5	22
51011-16-06	16	10	06	35	22
51011-16-08	16	13	08	36	22
51011-16-10	16	16	10	36.5	22
51011-16-12	16	19	12	38	22
51011-18-12	18	19	12	40.5	24
51011-22-12	22	19	12	45	28
51011-22-14	22	22	14	45	28
51011-28-16	28	25	16	49	30
51011-34-20	34	32	20	53	33
51011-42-24	42	38	24	57	35
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is51012-xX-XX.
