20111-RW Metric Female Multiseal

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：20791-RW 90° GB Metric Female 74° Cone Seat
NEXT：20141-RW 45°Metric Female Multiseal

Specification
Contact Us

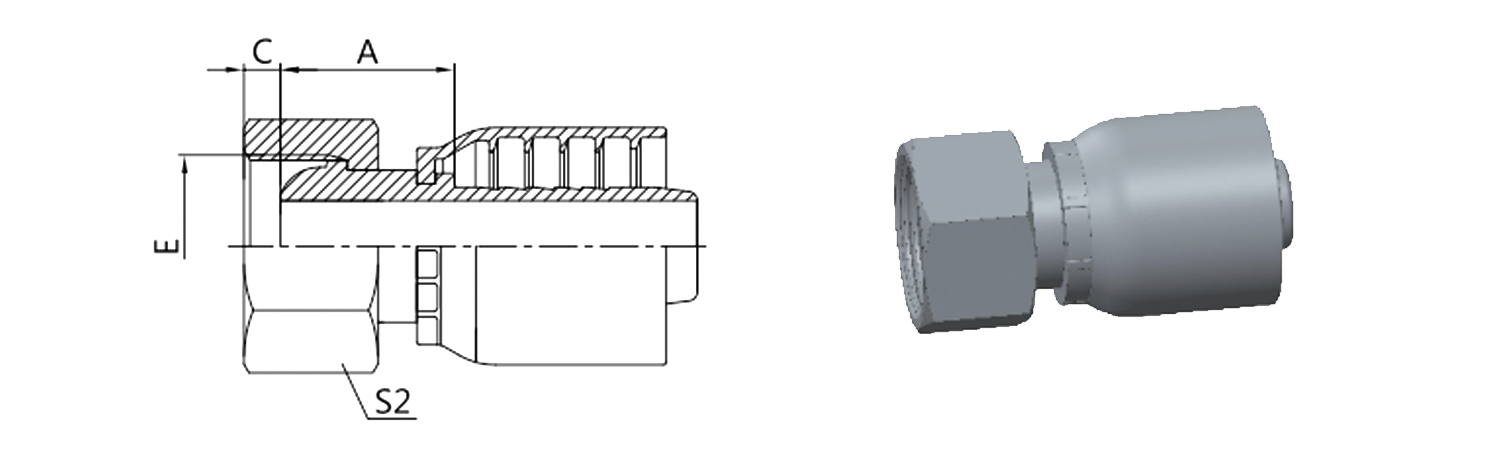

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S2
20111-14-04TRW	M14X1.5	6	04	19.5	4.5	17
20111-14-05RW	M14X1.5	8	05	19.5	4.5	19
20111-16-04TRW	M16X1.5	6	04	19.5	4.5	19
20111-16-05TRW	M16X1.5	8	05	20	4.5	19
20111-16-06RW	M16X1.5	10	06	20	4.5	22
20111-18-05TRW	M18X1.5	8	05	21.5	4	22
20111-18-06TRW	M18X1.5	10	06	21.5	4	22
20111-20-06TRW	M20X1.5	10	06	20.5	5.5	24
20111-22-06TRW	M22X1.5	10	06	21	5	27
20111-22-08TRW	M22X1.5	13	08	23.5	5	27
20111-22-10RW	M22X1.5	16	10	24	5	27
20111-24-08TRW	M24X1.5	13	08	22	5.5	30
20111-24-10RW	M24X1.5	16	10	25.5	5	30
20111-27-08DTRW	M27X1.5	13	08	23	5.5	32
20111-27-10DTRW	M27X1.5	16	10	26	5.5	32
20111-27-12DRW	M27X1.5	19	12	26	5.5	32
20111-27-10TRW	M27X2	16	10	24	7	32
20111-30-12DRW	M30X1.5	19	12	26.5	6	36
20111-30-12TRW	M30X2	19	12	26.5	7	36
20111-36-12TRW	M36X2	19	12	26	7	41
20111-36-14TRW	M36X2	22	14	26	7	41
20111-39-14TRW	M39X2	22	14	28.5	7	46
20111-39-16TRW	M39X2	25	16	29.5	7	46
20111-42-16TRW	M42X2	25	16	30	8.5	50
20111-45-20TRW	M45X2	32	20	31.5	8.5	55
20111-52-20TRW	M52X2	32	20	33	9	60
20111-52-24TRW	M52X2	38	24	33	9	60
20111-64-32TRW	M64X2	51	32	35	14	75
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20112-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
