24241-RW 45° ORFS Female Flat Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：24211-RW ORFS Female Flat Seat
NEXT：24291-RW 90° ORFS Female Flat Seat

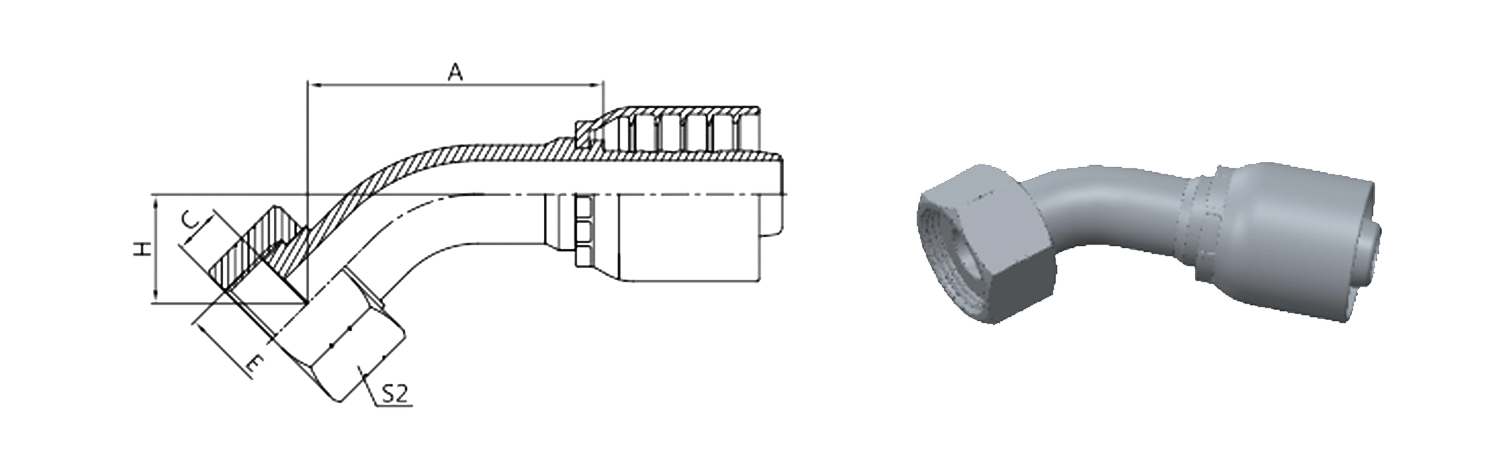

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
24241-04-04RW	9/16"X18	6	04	30.7	8.5	11.1	19
24241-06-04TRW	11/16"X16	6	04	35.8	10.0	16	22
24241-06-06RW	11/16"X16	10	06	37.7	10.0	14	22
24241-08-06TRW	13/16"X16	10	06	44.1	11.0	20.1	27
24241-08-08RW	13/16"X16	13	08	44.3	11.0	17.5	27
24241-10-08TRW	1"X14	13	08	48.5	13.5	21.5	30
24241-10-10RW	1"X14	16	10	56.0	13.5	19.7	30
24241-12-08TRW	G5/8"X14	13	8	49	15.0	22.2	36
24241-12-10TRW	1.3/16"X12	16	10	59.1	15.0	22.8	36
24241-12-12TRW	1.3/16"X12	19	12	66	15.0	24.5	36
24241-16-12TRW	1.7/16"X12	19	12	68.3	14.8	26.6	41
24241-16-16TRW	1.7/16"X12	25	16	79.0	14.8	28.6	41
24241-20-20RW	1.11/16"X12	32	20	95.4	15.0	35.2	50
24241-24-24TRW	2"X12	38	24	105.9	15	36.8	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22642-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
