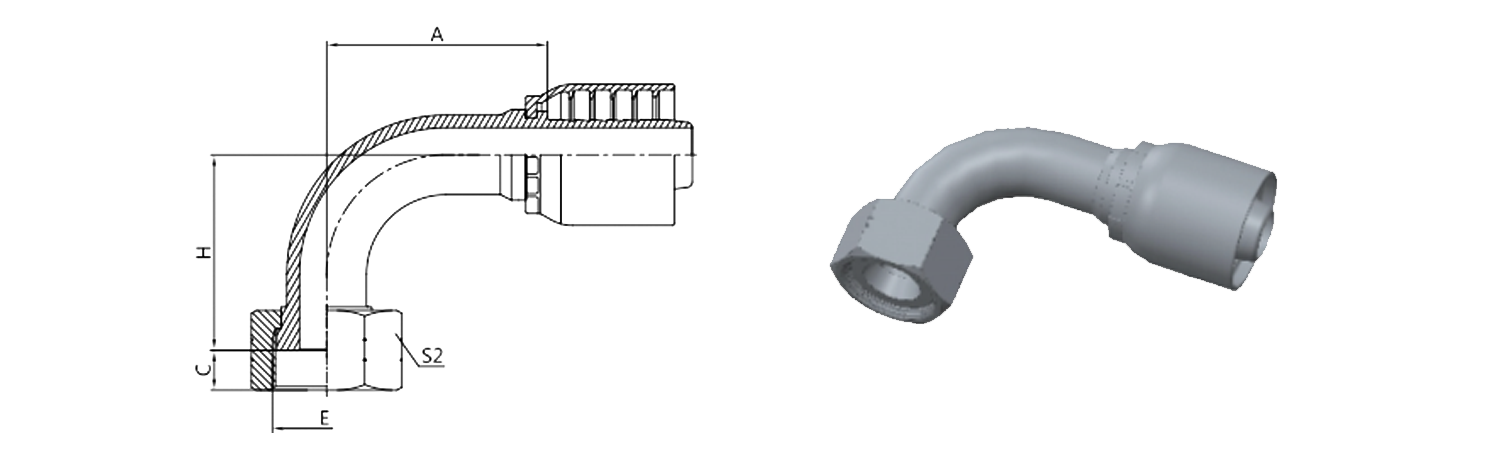

24291-RW 90° ORFS Female Flat Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：24241-RW 45° ORFS Female Flat Seat
NEXT：15611-RW NPT Male

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS H	DIMENSIONS C	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS H	DIMENSIONS C	DIMENSIONS S2
24291-04-04TRW	9/16"X18	6	04	30	41	8.5	19
24291-04-05RW	9/16"X18	8	05	33	44	8.5	19
24291-06-05TRW	11/16"X16	8	05	33	37.5	10	22
24291-06-06RW	11/16"X16	10	06	35.3	49.3	10	22
24291-06-08RW	11/16"X16	13	08	35.8	49.3	10	22
24291-08-06TRW	13/16"X16	10	06	35.3	39.8	11	27
24291-08-08RW	13/16"X16	13	08	41	57.5	11	27
24291-08-10RW	13/16"X16	16	10	56.5	61.5	11	27
24291-10-08TRW	1"X14	13	08	41	46	13.5	30
24291-10-10TRW	1"X14	16	10	56	66	13.5	30
24291-10-12RW	1"X14	19	12	65.5	75.5	13.5	30
24291-12-10TRW	1.3/16"X12	16	10	56	51.5	15	36
24291-12-12TRW	1.3/16"X12	19	12	65.5	77	15	36
24291-12-16RW	1.3/16"X12	25	16	76.7	83.5	15	36
24291-16-12TRW	1.7/16"X12	19	12	65.5	62	14.8	41
24291-16-14TRW	1.7/16"X12	22	14	71.2	63	14.8	41
24291-16-16TRW	1.7/16"X12	25	16	76.9	67.5	14.8	41
24291-20-16TRW	1.11/16"X12	25	16	76.7	67.5	15	50
24291-20-20RW	1.11/16"X12	32	20	93	100	15	50
24291-24-20TRW	2"X12	32	20	93	78.5	14.8	60
24291-24-24TRW	2"X12	38	24	109.4	92	14.8	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 24292-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
