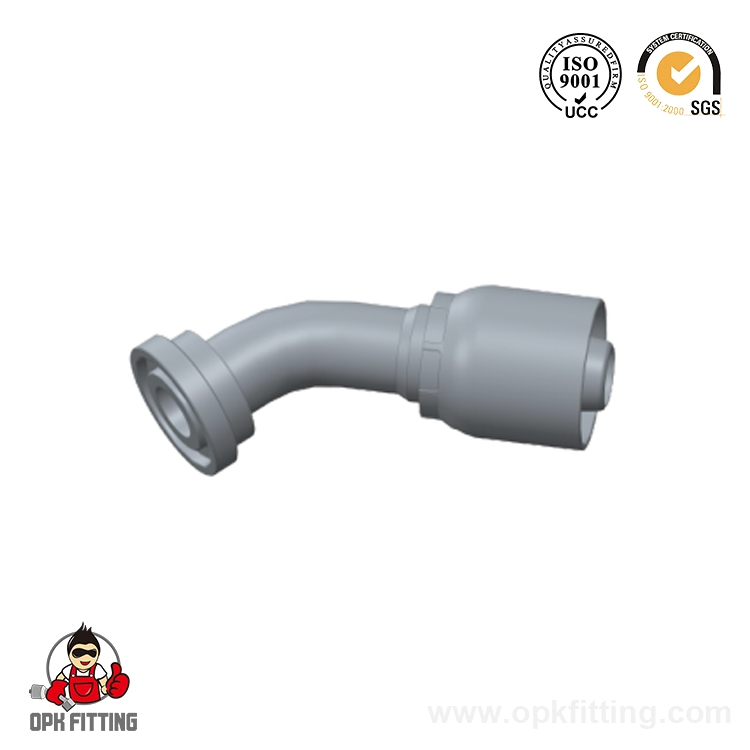

87341-RW 45° SAE Flange 3000 PSI

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：87311-RW 45° SAE Flange 3000 PSI
NEXT：87391-RW 90° SAE Flange 3000 PSI

Specification
Contact Us

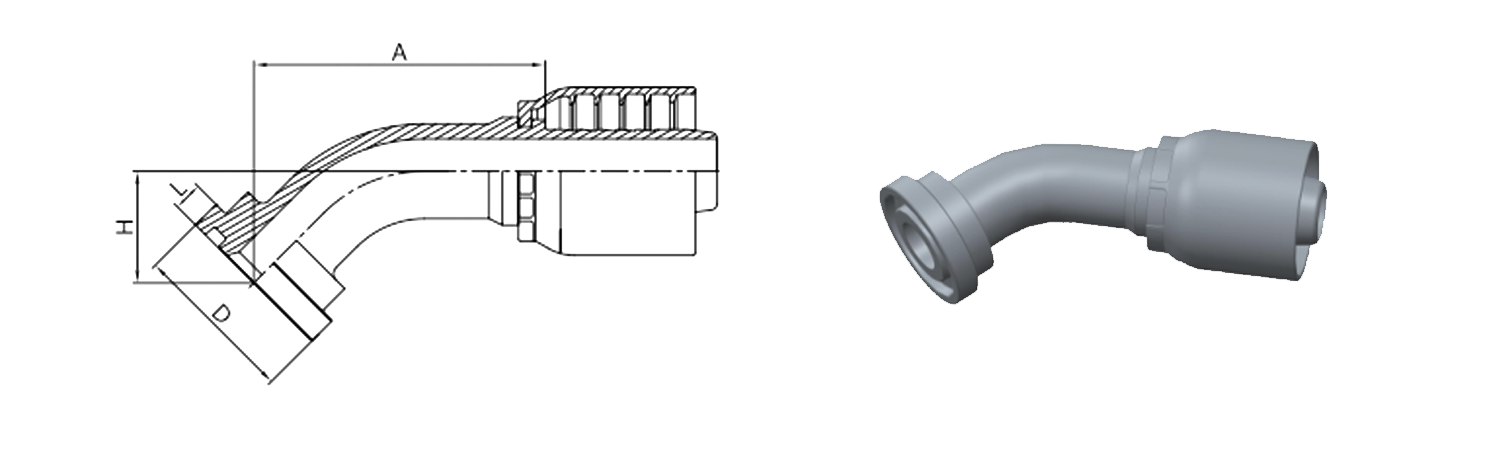

PART NO.	FLANGE SIZE	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS D	DIMENSIONS H	DIMENSIONS L
87341-08-08RW	1/2"	13	08	58.2	30.2	23	6.73
87341-12-08RW	3/4"	13	08	58.9	38.1	24	6.73
87341-12-10RW	3/4"	16	10	69.6	38.1	25.3	6.73
87341-12-12RW	3/4"	19	12	76.3	38.1	29	6.73
87341-16-12RW	1"	19	12	76.3	44.4	29	8
87341-16-16RW	1"	25	16	83.9	44.4	29.7	8
87341-16-20RW	1"	32	20	94.5	44.4	33.8	8
87341-20-16RW	1.1/4"	25	16	85.2	50.8	29.7	8
87341-20-20RW	1.1/4"	32	20	94.5	50.8	33.8	8
87341-24-20RW	1.1/2"	32	20	95.9	60.3	35.2	8
87341-24-24RW	1.1/2"	38	24	109.9	60.3	39	8
87341-32-24RW	2"	38	24	109.9	71.4	39	9.53
87341-32-32RW	2"	51	32	129.3	71.4	46.3	9.53
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 87342-xx-xx.
