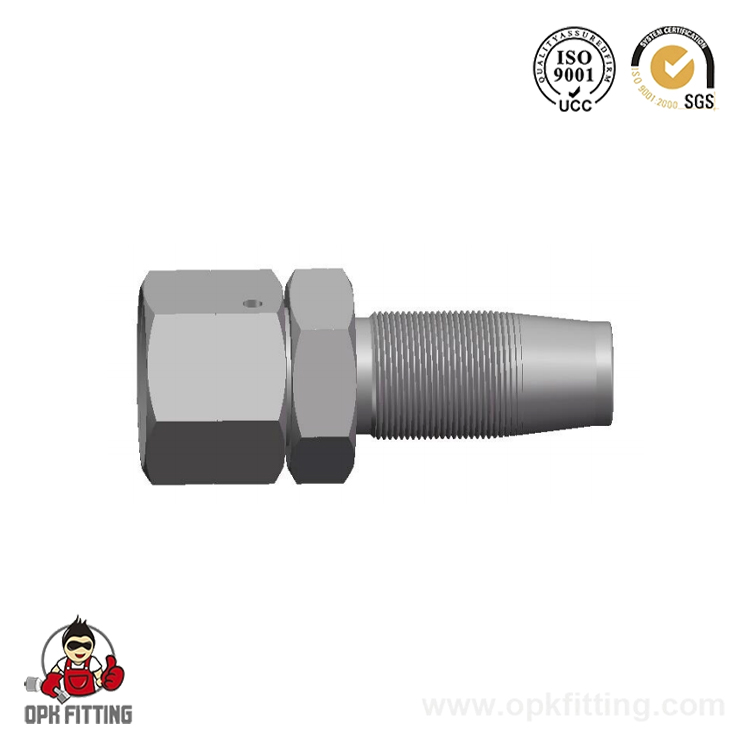

26718DW JIC Female 74°Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

Specification
Contact Us

PART NO.	THREAD E	HOSE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
26718D-04-04W	7/16"×20	04	22	9	14	15
26718D-05-05W	1/2"×20	05	25.4	9.5	14	17
26718D-06-06W	9/16"X18	06	24.5	10.5	17	19
26718D-08-08W	3/4"X16	08	31.5	11	22	24
26718D-10-10W	7/8"X14	10	35	13	27	27
26718D-12-12W	1.1/16"X12	12	37	15	32	32
26718D-16-16W	1.5/16"X12	16	33.5	16	38	41
26718D-20-20W	1.5/8"X12	20	41.5	17	41	50
26718D-24-24W	1.7/8"X12	24	43	20	46	55
26718D-32-32W	2.1/2"X12	32	45.5	23.5	65	75
Note: Suitable for SAE 100R5 hose.
