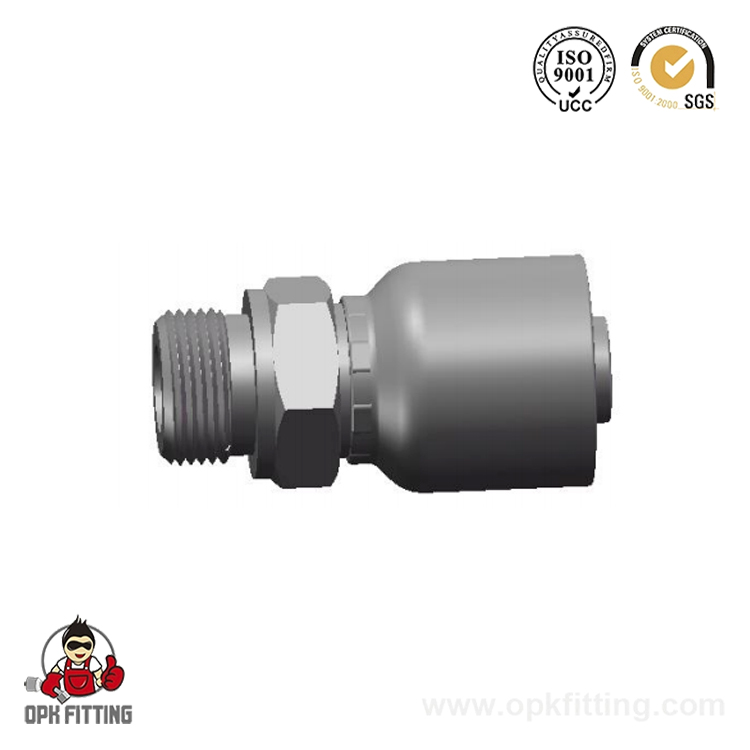

12211-RW BSP Male O-Ring Seal

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

PREV：20691-RW 90° Metric Female 60° Cone
NEXT：50011-RW Metric Standpipe Straight DIN 2353

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	O-RING	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1
12211-04-04RW	G1/4"X19	6	04	0111	25	11	19
12211-04-06RW	G1/4"X19	10	06	0111	23.5	11	19
12211-06-06RW	G3/8"X19	10	06	0113	26	11.5	24
12211-08-04RW	G1/2"X14	6	04	0115	30	14	27
12211-08-06RW	G1/2"X14	10	06	0115	32	14	27
12211-08-08RW	G1/2"X14	13	08	0115	32.5	14	27
12211-10-10RW	G5/8"X14	16	10	0910	33	15.5	30
12211-12-10RW	G3/4"X14	16	10	0119	33	15.5	36
12211-12-12RW	G3/4"X14	19	12	0119	35.5	15.5	36
12211-12-16RW	G3/4"X14	25	16	0119	36.5	15.5	36
12211-16-16RW	G1"X11	25	16	0217	42.5	18	41
12211-20-20RW	G1.1/4"X11	32	20	0222	46	20	50
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 12212-xX-XX.
