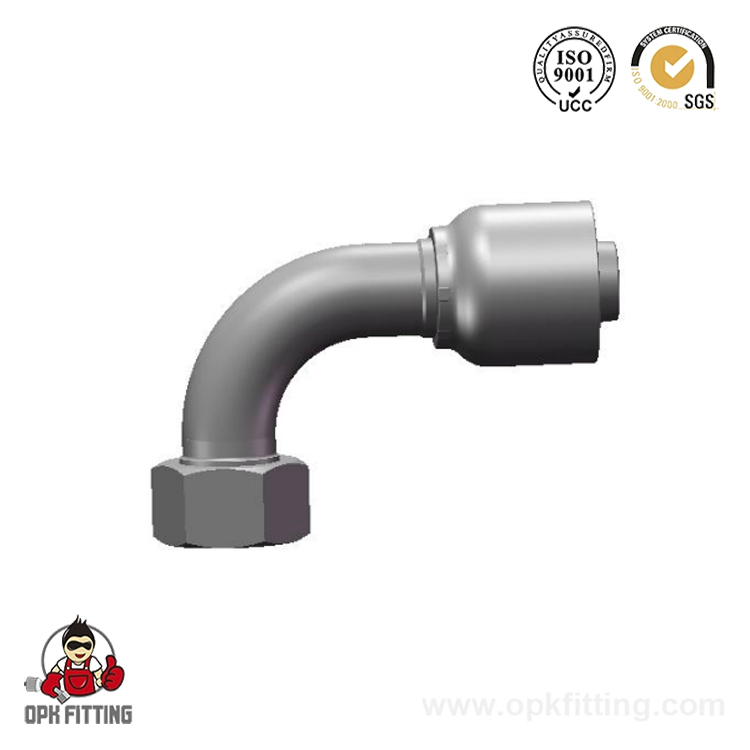

20691-RW 90° Metric Female 60° Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

PREV：20491C-RW 90° Metric Female 24°Multiseal L.T.DIN 3868
NEXT：12211-RW BSP Male O-Ring Seal

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
20691-14-04TRW	M14X1.5	6	04	30	5.5	37	19
20691-16-05TRW	M16X1.5	8	05	33	5.5	40.5	22
20691-18-06TRW	M18X1.5	10	06	35.3	5.5	43.8	24
20691-22-08TRW	M22X1.5	12	08	41	6	52	27
20691-27-10DTRW	M27X1.5	16	10	56	6	55	32
20691-30-12DTRW	M30X1.5	20	12	66.2	6	68.5	36
20691-36-16TRW	M36X2	25	16	78	6.5	76.5	41
20691-36-14TRW	M36X2	22	14	71.2	6.5	67.5	41
20691-39-16TRW	M39X2	25	16	76.7	6.5	74	46
20691-45-20TRW	M45X2	32	20	91.5	8.5	85	55
20691-52-24TRW	M52X2	40	24	109.4	10	99	60
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 20692-xx-XX.

About OPK Fitting

OPK FITTING Hydraulic Equipment Factory is a specialized domestic factory with hydraulic pipes and adaptors production experience. Our managing scope relates to various fields such as hydraulic systems etc.; Including all kinds of materials with different pressure levels, flexible hydraulic hoses with various size criteria, hose fitting, adaptor, etc. They have been respectively applied in the hydraulic and fluid conveyance systems of industries, such as machinery, metallurgy petroleum, construction, ships, space-flight, agriculture, pharmaceutical, food, and so forth.
Ningbo OPK Fitting Co., Ltd. is a China professional OEM 20691-RW 90° Metric Female 60° Cone suppliers and ODM 20691-RW 90° Metric Female 60° Cone suppliers .
