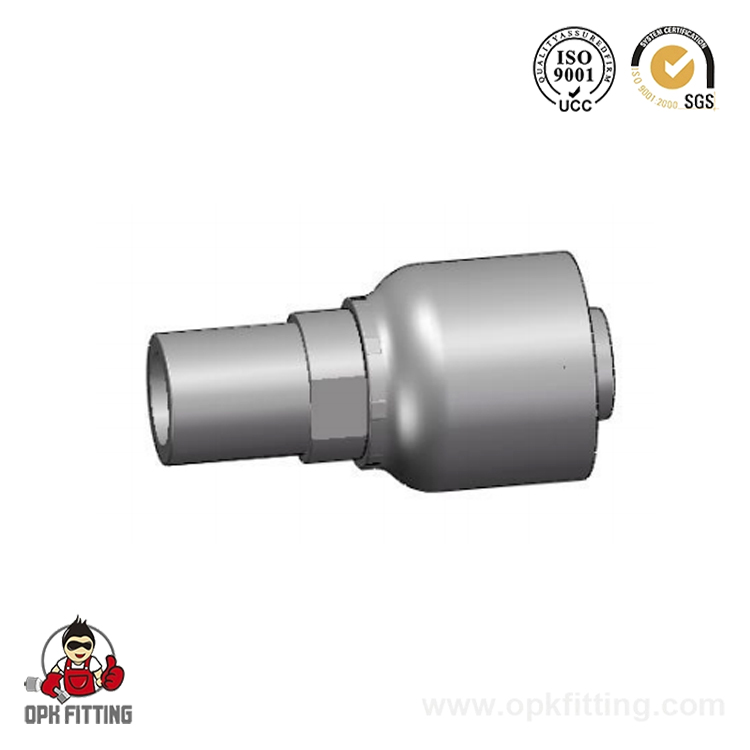

50011-RW Metric Standpipe Straight DIN 2353

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: > 72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Please contact our sales person for the free sample.

Get A Quote

PREV：12211-RW BSP Male O-Ring Seal
NEXT：50091-RW 90° Metric Standpipe Straight DIN 2353

Specification
Contact Us

PART NO.	TUBE O.D.	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	NOTE
50011-06-03RW	6	5	03	28.5	22	L
50011-06-04RW	6	6	04	29	22
50011-10-05RW	10	8	05	31	23
50011-10-06RW	10	10	06	32	23
50011-12-06RW	12	10	06	33.5	23
50011-12-08RW	12	13	08	33	23
50011-15-06RW	15	10	06	35	25
50011-15-08RW	15	13	08	35.5	25
50011-18-08RW	18	13	08	36.5	26
50011-18-10RW	18	16	10	40.5	26
50011-22-10RW	22	16	10	44.5	28
50011-22-12RW	22	19	12	44	28
50011-22-16RW	22	25	16	46	28
50011-28-16RW	28	25	16	49	30
50011-35-20RW	35	32	20	56	36
50011-42-24RW	42	38	24	62	40
50011-08-04RW	8	6	04	31	24	S
50011-08-05RW	8	8	05	33	24
50011-08-06RW	8	10	06	33	24
50011-10-04RW	10	6	04	34	26
50011-12-04RW	12	6	04	34.5	26
50011-12-05RW	12	8	05	35.5	26
50011-14-06RW	14	10	06	39.5	29
50011-14-08RW	14	13	08	40	29
50011-14-12RW	14	19	12	45.5	29
50011-16-08RW	16	13	08	41	30
50011-16-10RW	16	16	10	45	30
50011-20-10RW	20	16	10	52	36
50011-20-12RW	20	19	12	52.5	36
50011-25-12RW	25	19	12	56	40
50011-25-16RW	25	25	16	57	40
50011-30-16RW	30	25	16	63	44
50011-30-20RW	30	32	20	64	44
50011-38-16RW	38	25	16	69	50
50011-38-20RW	38	32	20	70	50
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 50012-xx-xX.
