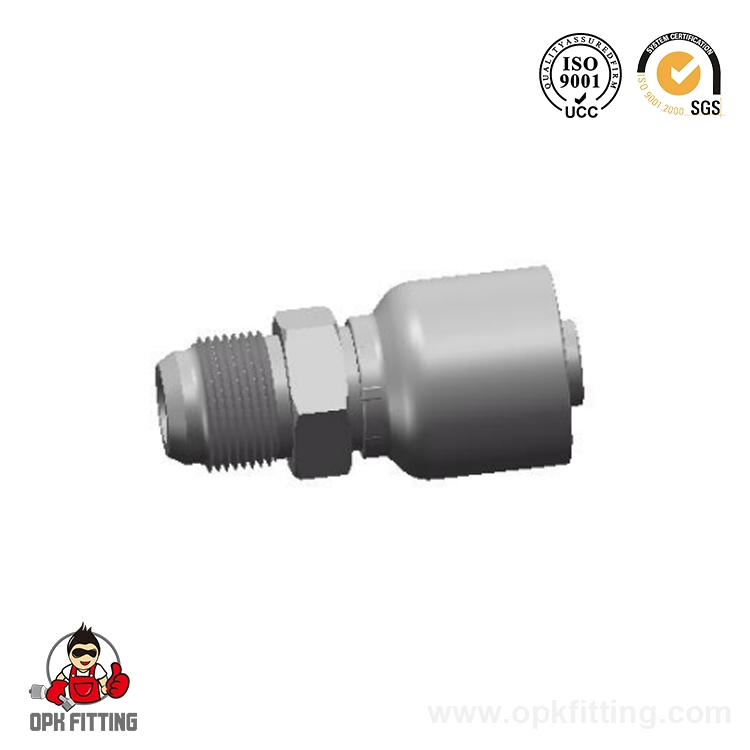

19611-RW JIS BSPP Male 60° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：28611-RW JIS Metric Female 60° Cone Seat
NEXT：29611-RW JIS GAS Female 60° Cone Seat JIS B8363

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS B	DIMENSIONS S1
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS B	DIMENSIONS S1
19611-04-04RW	G1/4"X19	6	04	28.5	16	17
19611-06-06RW	G3/8"X19	10	06	30.5	18	19
19611-08-08RW	G1/2"X14	13	08	35	20	22
19611-12-12RW	G3/4"X14	19	12	40.5	22	30
19611-16-16RW	G1"X11	25	16	44	24	36
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 19612-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
