28611-RW JIS Metric Female 60° Cone Seat

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：18611-RW JIS Metric Male 60° Cone Seat
NEXT：19611-RW JIS BSPP Male 60° Cone Seat

Specification
Contact Us

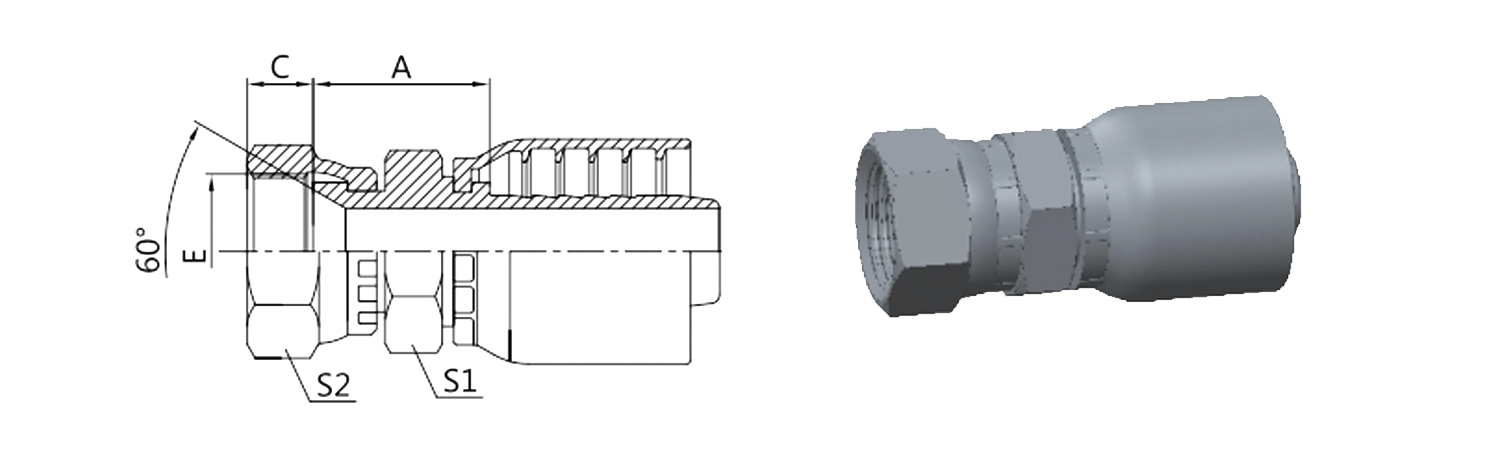

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S 1	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S 1	DIMENSIONS S2
28611-12-04RW	M12X1.5	6	04	20	9	17	17
28611-14-04RW	M14X1.5	6	04	23	10.5	17	19
28611-14-06RW	M14X1.5	10	06	21	10.5	19	19
28611-16-04RW	M16X1.5	6	04	24	10	22	22
28611-16-05RW	M16X1.5	8	05	24	10	22	22
28611-16-06RW	M16X1.5	10	06	24	10	22	22
28611-18-06RW	M18X1.5	10	06	24	11.5	24	24
28611-18-08RW	M18X1.5	13	08	24.5	11.5	24	24
28611-20-08RW	M20X1.5	13	08	28.5	12	27	27
28611-22-08RW	M22X1.5	13	08	25.5	14	27	27
28611-24-08RW	M24X1.5	13	08	27.5	15	32	32
28611-24-10RW	M24X1.5	16	10	28	15	32	32
28611-30-12RW	M30X1.5	19	12	28.5	18.3	36	36
28611-33-12RW	M33X1.5	19	12	31	21.3	41	41
28611-33-16RW	M33X1.5	25	16	32	21.3	41	41
28611-36-20RW	M36X1.5	32	20	35.5	20	46	46
28611-42-24RW	M42X1.5	38	24	40	18.8	55	55
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 28612-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
