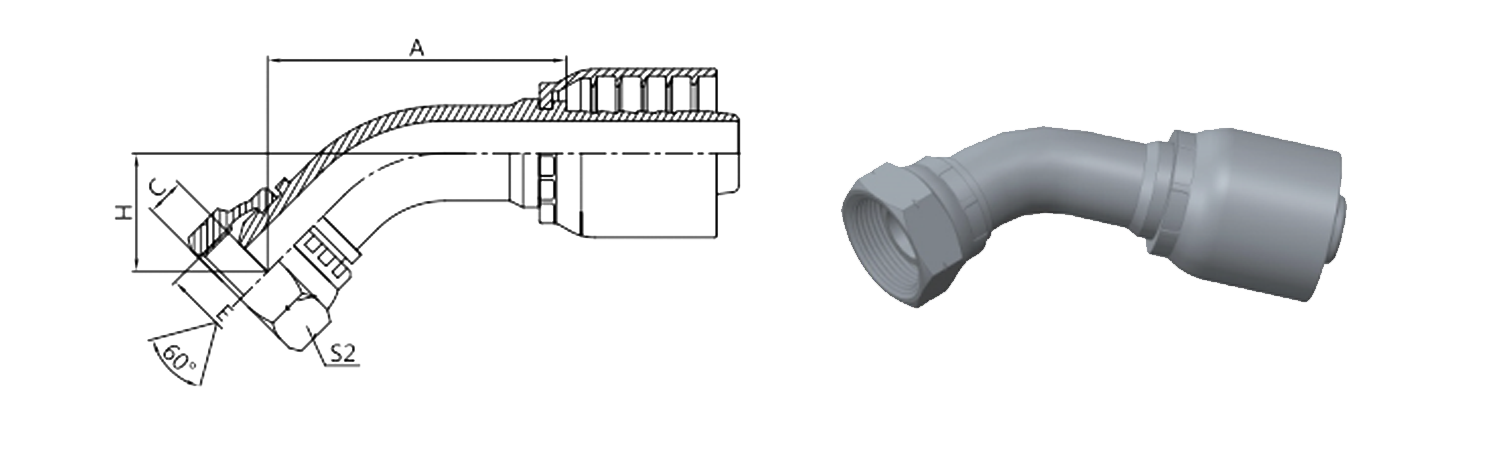

22641-RW 45° Bsp Female 60° Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：22611DSM-RW BSP Female60° Cone Double Hexagon
NEXT：22691-RW 90°BSP Female 60° Cone

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
22641-04-04RW	G1/4"X19	6	04	42.3	5.5	20.2	19
22641-06-04RW	G3/8"X19	6	04	43.2	6.3	21	22
22641-06-05RW	G3/8"X19	8	05	45.3	6.3	22	22
22641-06-06RW	G3/8"X19	10	06	46.9	6.3	22.6	22
22641-08-06RW	G1/2"X14	10	06	46.7	7.5	22.5	27
22641-08-08RW	G1/2"X14	13	08	61.1	7.5	26.1	27
22641-10-08RW	G5/8"X14	13	08	61.4	9.5	26.5	30
22641-10-10RW	G5/8"X14	16	10	72	9.5	27.8	30
22641-12-08TRW	G3/4"X14	13	08	59.4	10.9	24.4	32
22641-12-10RW	G3/4"X14	16	10	73	10.9	28.2	32
22641-12-12RW	G3/4"X14	19	12	78.6	10.9	31.8	32
22641-16-12RW	G1"X11	19	12	77.6	11.7	30.2	41
22641-16-16RW	G1"X11	25	16	88.4	11.7	34.2	41
22641-20-16RW	G1.1/4"X11	25	16	86.8	11	32.5	50
22641-20-20RW	G1.1/4"X11	32	20	98.8	11	38	50
22641-24-24RW	G1.1/2"X11	38	24	116.2	13	45.5	55
22641-32-32RW	G2"X11	51	32	135.7	16	52.7	70
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22642-xx-xx. EATON Winner H-AP-EHGC-2021-C1 June 2009
