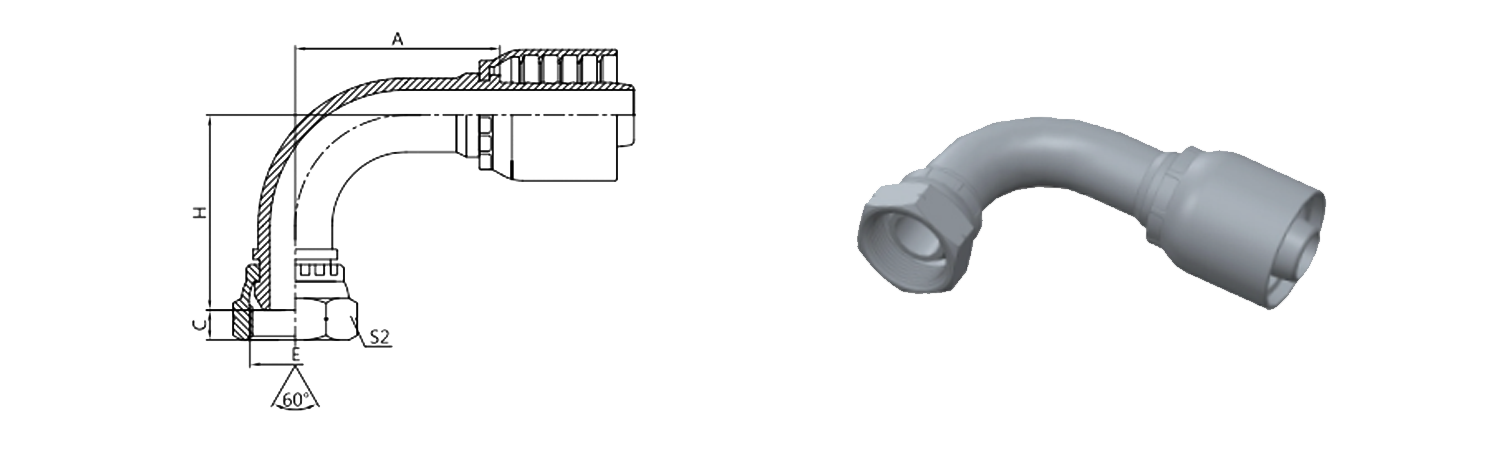

22691-RW 90°BSP Female 60° Cone

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：22641-RW 45° Bsp Female 60° Cone
NEXT：14211-RW ORFS Male O-Ring Seal

Specification
Contact Us

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS H	DIMENSIONS S2
22691-02-03RW	G1/8"X28	5	03	26.5	5.5	31.5	14
22691-02-04RW	G1/8"X28	6	04	30	5.5	34.5	14
22691-04-03RW	G1/4"X19	5	03	26.5	5.5	33.5	19
22691-04-04RW	G1/4"X19	6	04	30	5.5	36.5	19
22691-04-05RW	G1/4"X19	8	05	33	5.5	39.5	19
22691-04-06RW	G1/4"X19	10	06	30	5.5	36.5	19
22691-06-04RW	G3/8"X19	6	04	30	6.3	37.7	22
22691-06-05RW	G3/8"X19	8	05	33	6.3	40.7	22
22691-06-06RW	G3/8"X19	10	06	35.3	6.3	43	22
22691-08-06RW	G1/2"X14	10	06	35.3	7	41.8	27
22691-08-08RW	G1/2"X14	13	08	41	7.5	51	27
22691-08-10RW	G1/2"X14	16	10	41.5	7.5	51	27
22691-10-08RW	G5/8"X14	13	08	41	9.5	51.5	30
22691-10-10RW	G5/8"X14	16	10	56	9.5	56	30
22691-12-08RW	G3/4"X14	13	08	41	10.9	48.6	32
22691-12-10RW	G3/4"X14	16	10	56	10.9	56.6	32
22691-12-12RW	G3/4"X14	19	12	64.9	10.9	66.1	32
22691-16-12RW	G1"X11	19	12	65.5	11.7	63.8	41
22691-16-14RW	G1"X11	22	14	71.2	11.7	69.3	41
22691-16-16RW	G1"X11	25	16	76.7	11.7	73.8	41
22691-20-16RW	G1.1/4"X11	25	16	76.7	11	72	50
22691-20-20RW	G1.1/4"X11	32	20	91.5	11	84.3	50
22691-24-24RW	G1.1/2"X11	38	24	109.4	13	103	55
22691-32-32RW	G2"X11	51	32	131.8	16	123.3	70
Note: 1.For use with braided hoses. 2.If use with spiral hoses, hose fitting series number is 22692-xx-xx.
