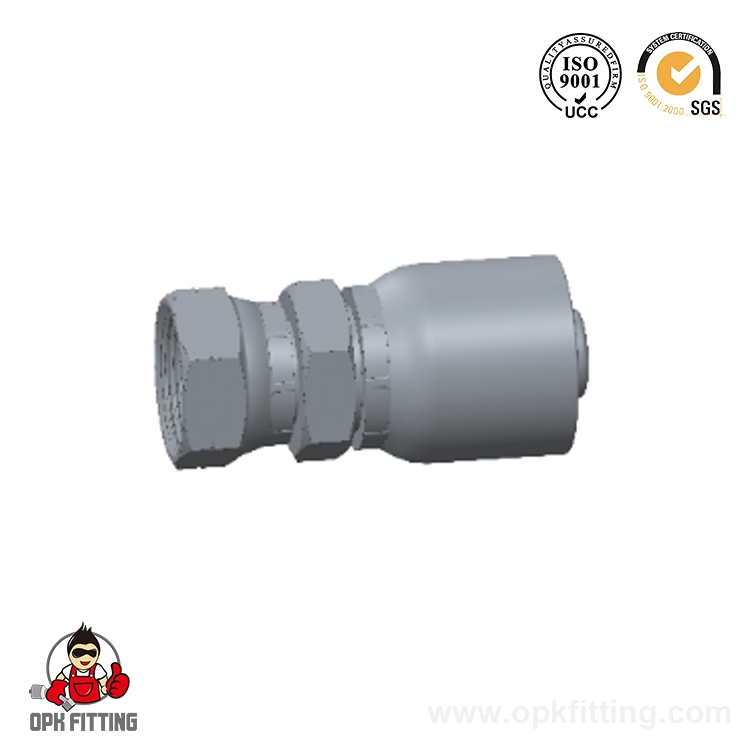

22611DSM-RW BSP Female60° Cone Double Hexagon

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：22611-RW BSP Female 60° Cone
NEXT：22641-RW 45° Bsp Female 60° Cone

Specification
Contact Us

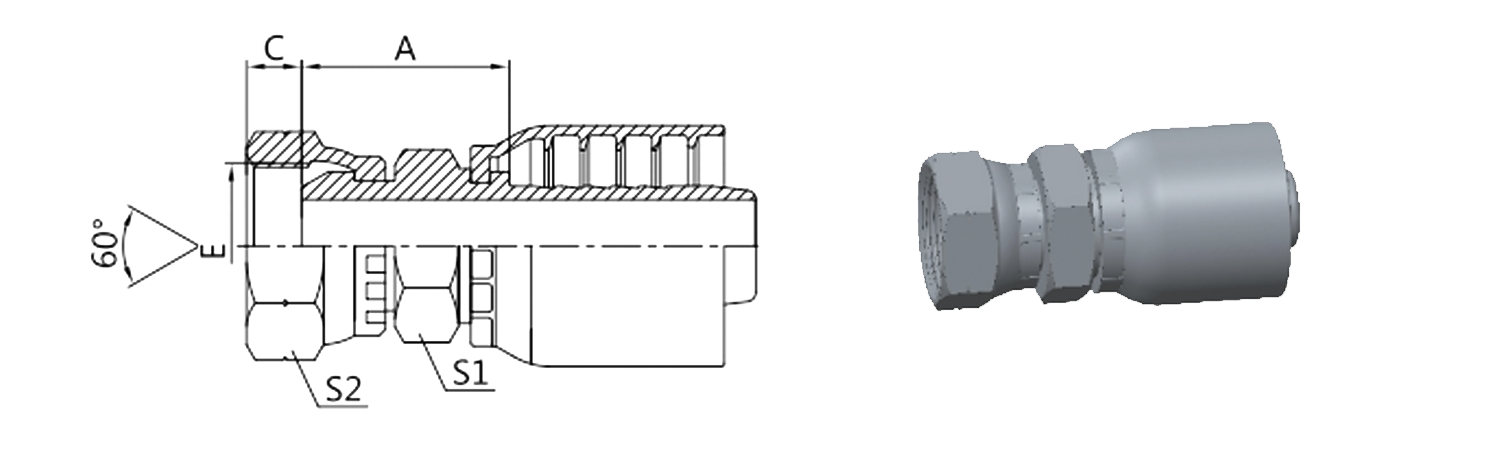

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	DIMENSIONS A	DIMENSIONS C	DIMENSIONS S1	DIMENSIONS S2
22611D-04-04SM	G1/4"X19	6	04	23.5	5.5	12	19
22611D-06-06SM	G3/8"X19	10	06	24.5	6.3	17	22
22611D-08-08SM	G1/2"X14	13	08	29	7.5	22	27
22611D-10-08SM	G5/8"X14	13	08	29	9.5	22	30
22611D-12-08SM	G3/4"X14	13	08	31.5	10.9	27	32
22611D-12-12SM	G3/4"X14	19	12	33.5	10.9	27	32
22611D-16-16SM	G1"X11	25	16	35.5	11.7	32	41
22611D-20-20WSM	G1.1/4"X11	32	20	42	11	41	50
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 22612D-xx-xxSM. EATON Winner H-AP-EHGC-2021-C1 June 2009
