10513 Metric Male 24° Cone Seat H.T

Categories
Recommended Products
  • 10513 Metric Male 24° Cone Seat H.T
  • 10513 Metric Male 24° Cone Seat H.T

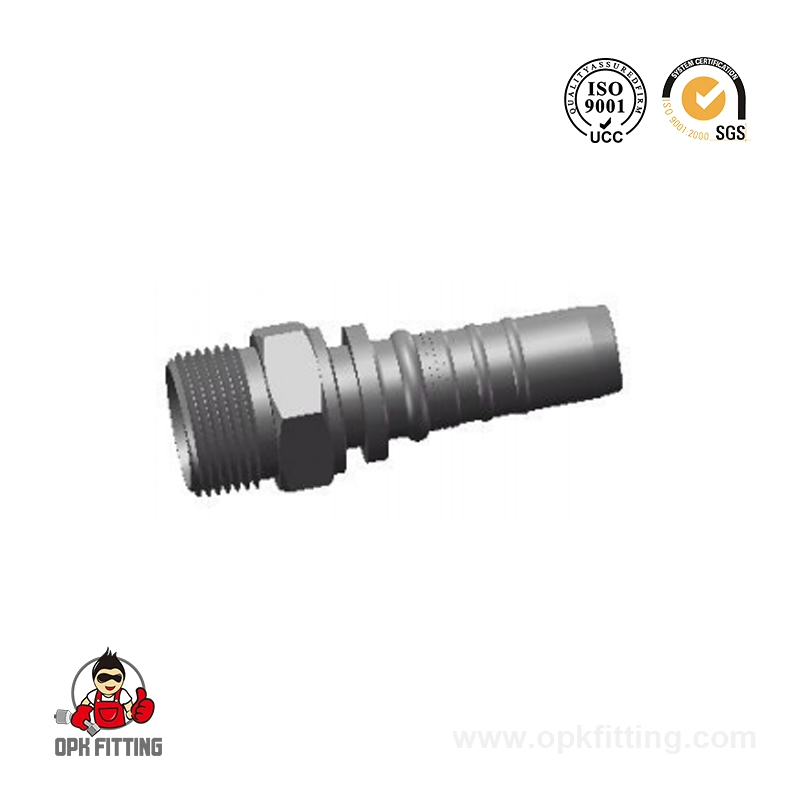

10513 Metric Male 24° Cone Seat H.T

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customers only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote
  • Specification
  • Contact Us

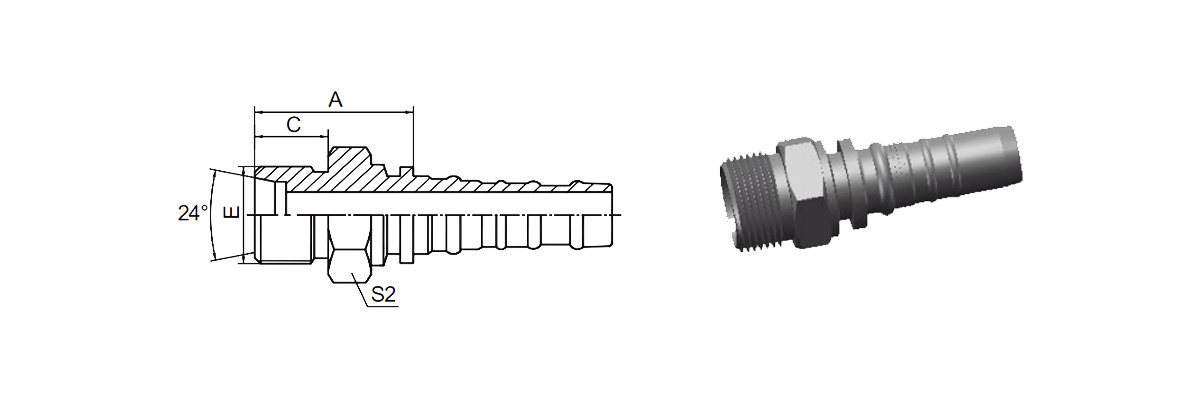

  • PART NO. THREAD  E HOSE BORE
    DN    		 HOSE BORE
    DASH    		 TUBE O.D. DIMENSIONS
    A    		 DIMENSIONS
    C    		 DIMENSIONS
    S2
    10513-36-12 M36X2 19  12  25  43.5  18  41
    10513-42-16 M42X2 25  16  30  46.4  20  46
    10513-52-20 M52X2 32  20  38  52.8  22  55
