14211-RW ORFS Male O-Ring Seal

1. Raw Material: Carbon Steel & Stainless Steel available
2. Standard Plating: Trivalent Zinc Plating ( Cr3 / Chrome Free ), Silver & Yellow
3. Salt Spray Test: >72 Hours ( If customer have higher requirement, we can also do with 200 Hours )
4. Packing: Products are protected with the plastic caps and then packed in carbon box.
5. OEM Service: Available. Customer only need to provide the product drawing or samples.
6. Sample: Free sample.

Get A Quote

PREV：22691-RW 90°BSP Female 60° Cone
NEXT：24211-RW ORFS Female Flat Seat

Specification
Contact Us

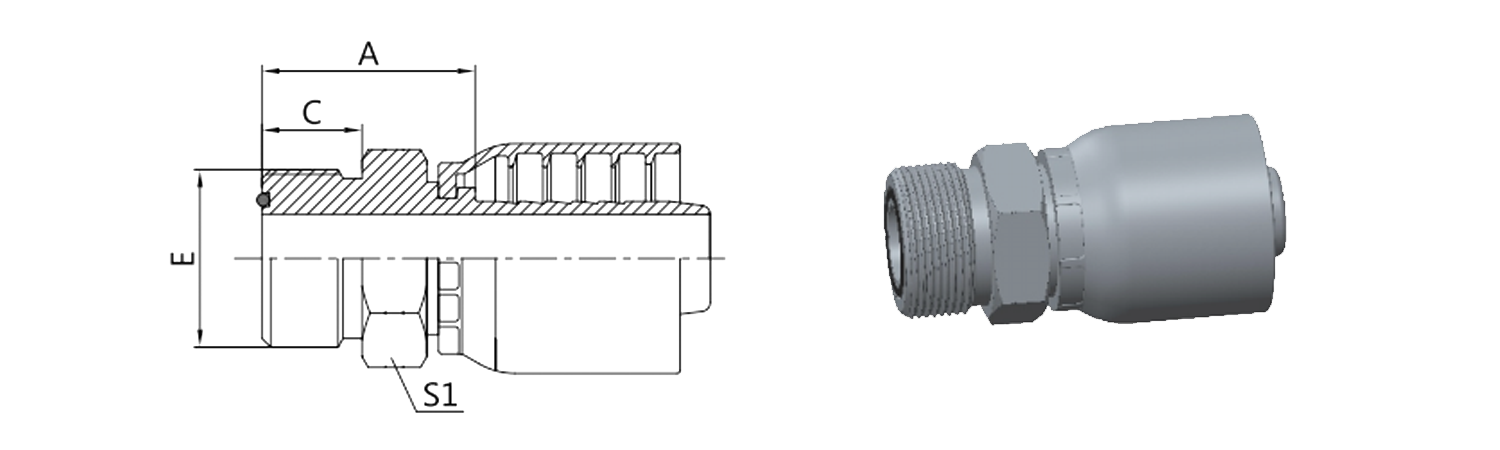

PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	O-RING	DIMENSIONS A	DIMENSIONS B	DIMENSIONS S1
PART NO.	THREAD E	HOSE BORE DN	HOSE BORE DASH	O-RING	DIMENSIONS A	DIMENSIONS B	DIMENSIONS S1
14211-04-04RW	9/16"X18	6	04	O011	22.5	9.8	17
14211-06-04RW	11/16"X16	6	04	O012	24	11.2	19
14211-06-06RW	11/16"X16	10	06	O012	24	11.2	19
14211-08-06RW	13/16"X16	10	06	O014	27.5	13	22
14211-08-08RW	13/16"X16	13	08	O014	28.5	12.8	22
14211-08-10RW	13/16"X16	16	10	O014	28.5	12.8	22
14211-10-08RW	1"X14	13	08	O016	32.5	15.5	27
14211-10-10RW	1"X14	16	10	O016	33.5	15.5	27
14211-12-08RW	1.3/16"X12	13	08	O018	35.5	17	32
14211-12-10RW	1.3/16"X12	16	10	O018	36	17	32
14211-12-12RW	1.3/16"X12	19	12	O018	36.5	17	32
14211-16-12RW	1.7/16"X12	19	12	O021	37	17.5	38
14211-16-16RW	1.7/16"X12	25	16	O021	38.5	17.5	38
14211-20-20RW	1.11/16"X12	32	20	O025	41.5	17.5	46
14211-24-24RW	2"X12	38	24	O029	46.5	17.5	55
Note: 1. For use with braided hoses. 2. If use with spiral hoses, hose fitting series number is 14212-xx-xx.
